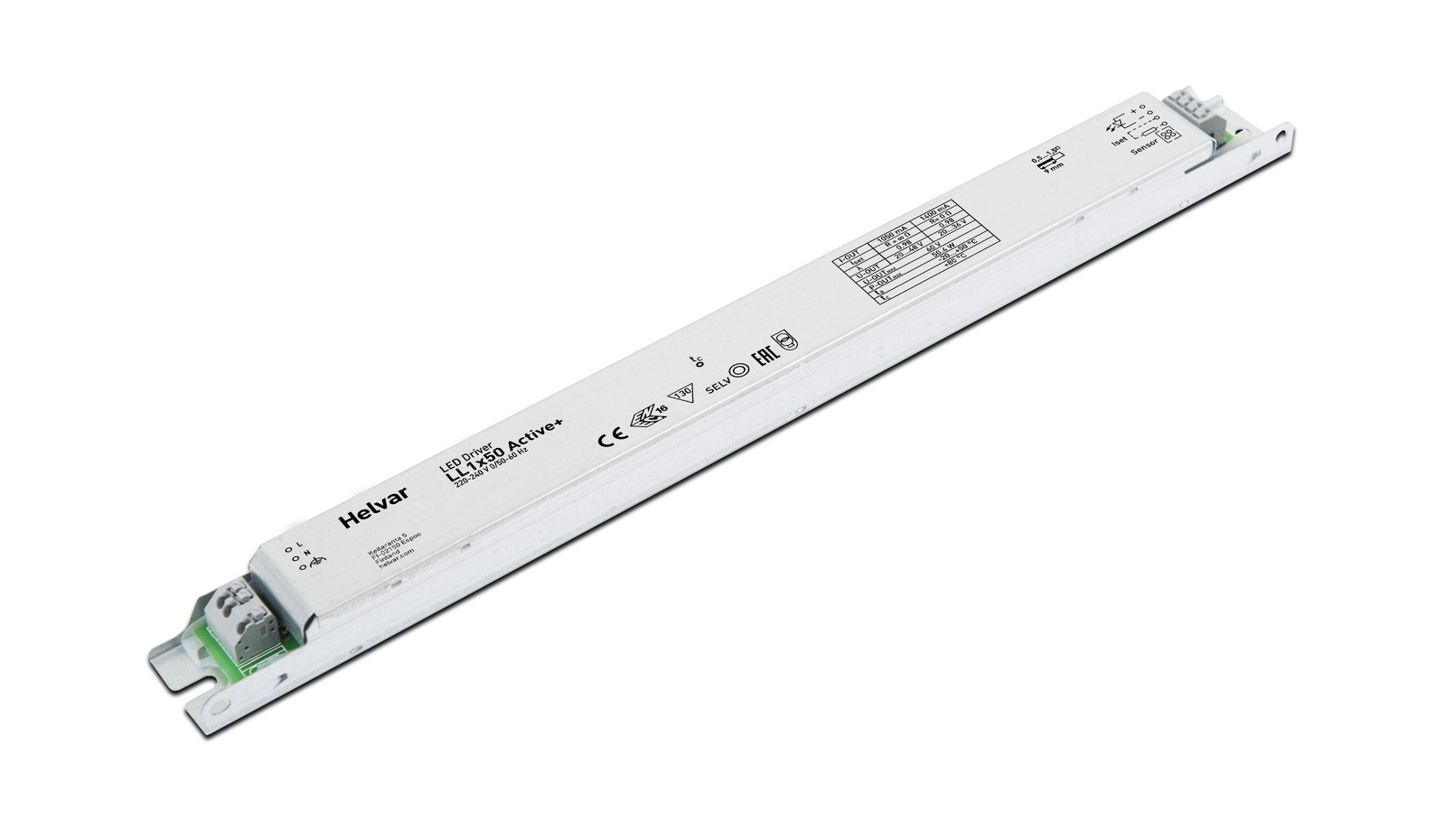

LL1x50 Active+

50 W Active+ LED driver

  • 1050 mA – 1400 mA adjustable current output
  • Product number: 5560004
  • Dimensions: 360 x 30 x 21 mm
  • LED Driver family: Other drivers
  • Main features: ActivePlus, Hybrid
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

50.4

Efficiency up to (%)

88

Power factor at full load

0.98

MinMax
Iout10501400
Uout20–4820–36

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–280

Max temperature at tc point (°C)

80

Ambient temperature range

–20 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

Active+

Dimming range

1% – 100%

Dimming method

Hybrid dimming

Features

NTC✓
Optional click-on strain relief for installation✓
Current setting resistors✓

Compatible products

Compatible products

LL1x2130-SR, LL-SR-NFC
