LL25SE-CC-150-500-NFC
25 W constant current LED driver
- 150 mA – 500 mA adjustable current output
- Product number: 5774001

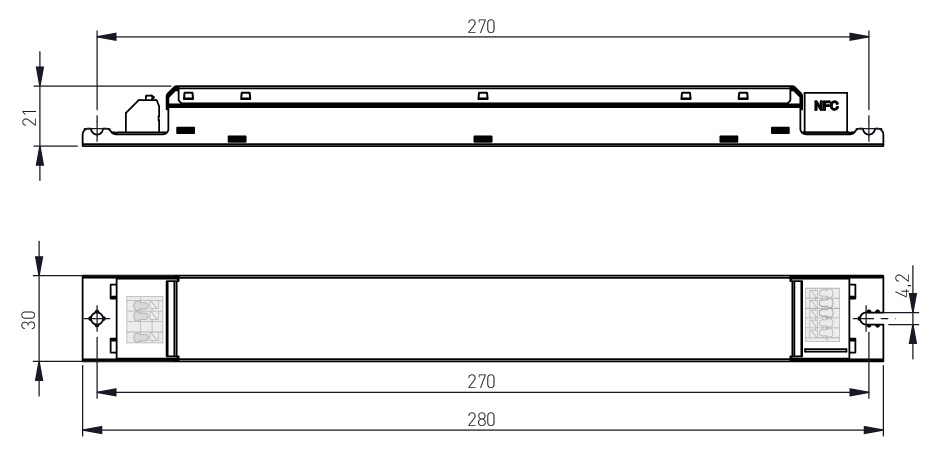

- Dimensions: 280 x 21 x 30 mm
- LED Driver family: SE Series
25 W constant current LED driver
| Output | Adjustable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 25 |
| Efficiency up to (%) | 88 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 150 | 500 | |
| Uout | 33-54 | 25-50 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –25 °C .. +65 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| NFC | ✓ |
| Certificates |
|
|---|
| Order code | Description |
|---|---|
| 5774001 | LL25SE-CC-150-500-NFC 10/1920 |
