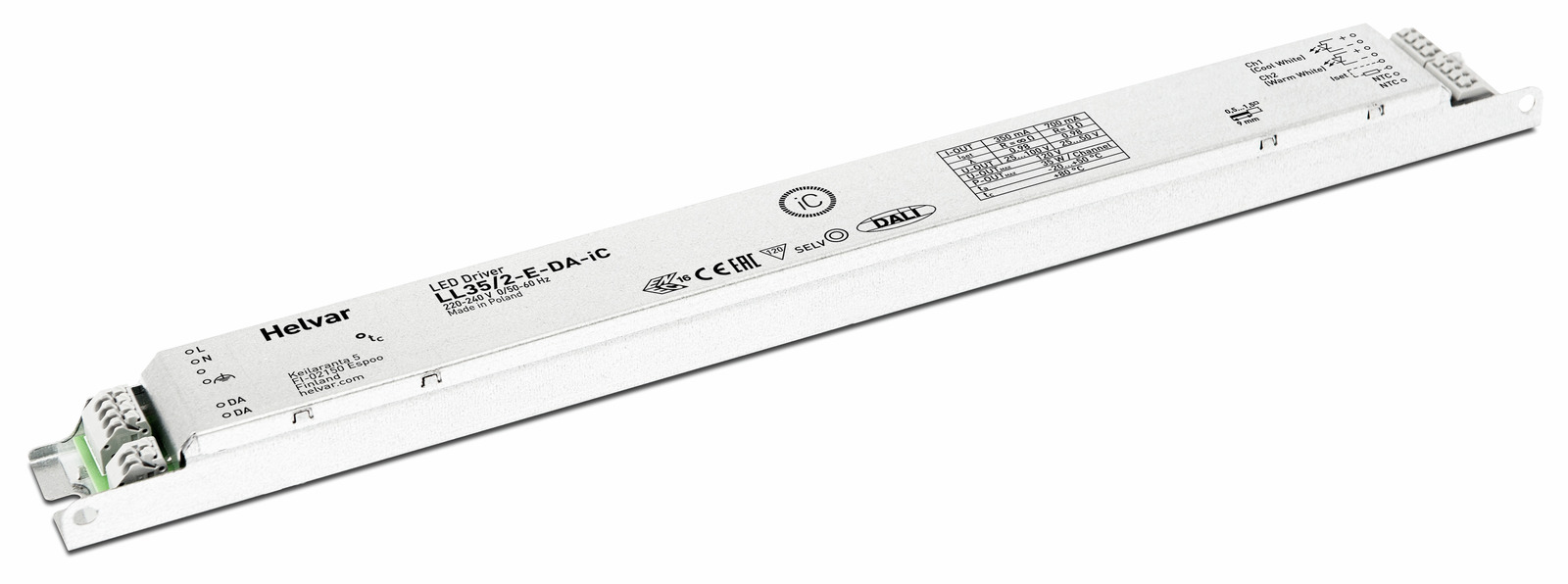

LL35-2CH-E-DA-iC (Discontinued)
35/2 W Tunable White (DT8) DALI dimmable LED driver
- 350 mA – 700 mA adjustable current output
- Product number: 5537004
- Dimensions: 380 x 35 x 21 mm
- LED Driver family: iC Series
- Main features: TunableWhite, DALI
35/2 W Tunable White (DT8) DALI dimmable LED driver
| Output | Adjustable current |
|---|---|
| Load protection | SELV120 |
| Max output power (W) | 35 |
| Efficiency up to (%) | 89 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 700 | |
| Uout | 25–100 | 25–50 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –20 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control |
|
|---|---|
| Dimming range | 1% – 100% |
| NTC | ✓ |
|---|---|
| Optional click-on strain relief for installation | ✓ |
| Certificates |
|
|---|
| Compatible products |
|---|
