LL35HE-CC-120-450

35 W constant current LED driver

  • 120 mA – 450 mA adjustable current output
  • Product number: 5725001

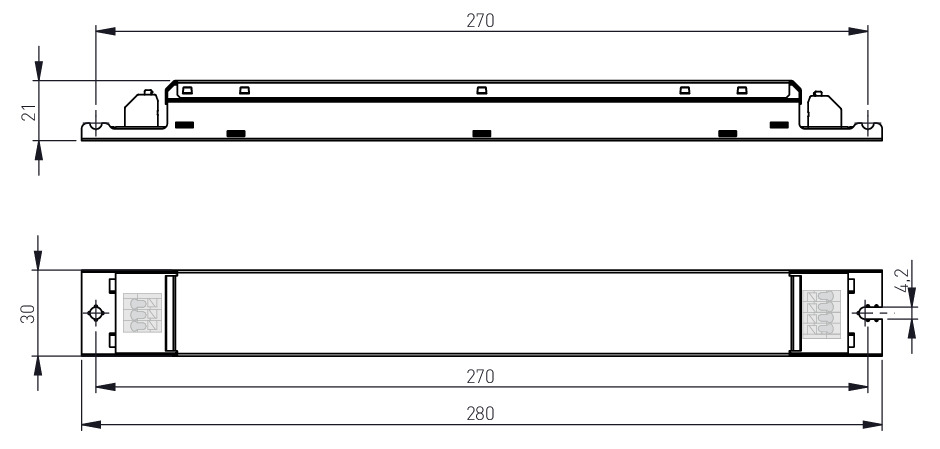

  • Dimensions: 280 x 21 x 30 mm
  • LED Driver family: HE Series
  • Main features: Efficient
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

Non-isolated

Max output power (W)

35

Efficiency up to (%)

93

Power factor at full load

0.98

MinMax
Iout120450
Uout70–22050–78

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176-280

Max temperature at tc point (°C)

80

Ambient temperature range

–25 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Control

ON/OFF

Features

Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓

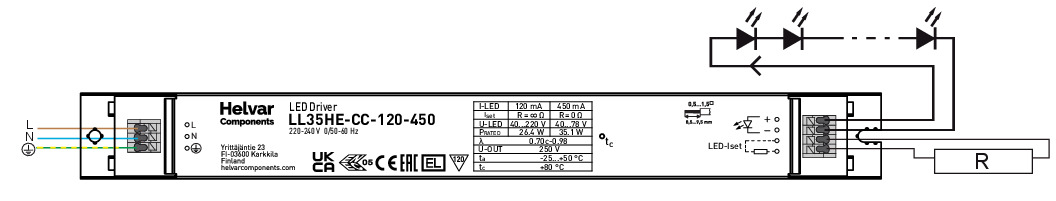

Current setting resistors✓

More information

Certificates


BIS
CB
EL
ENEC

Compatible products

Compatible products

LL1x2130-SR

Order codes

Order codeDescription
5725001LL35HE-CC-120-450 10/2000.
