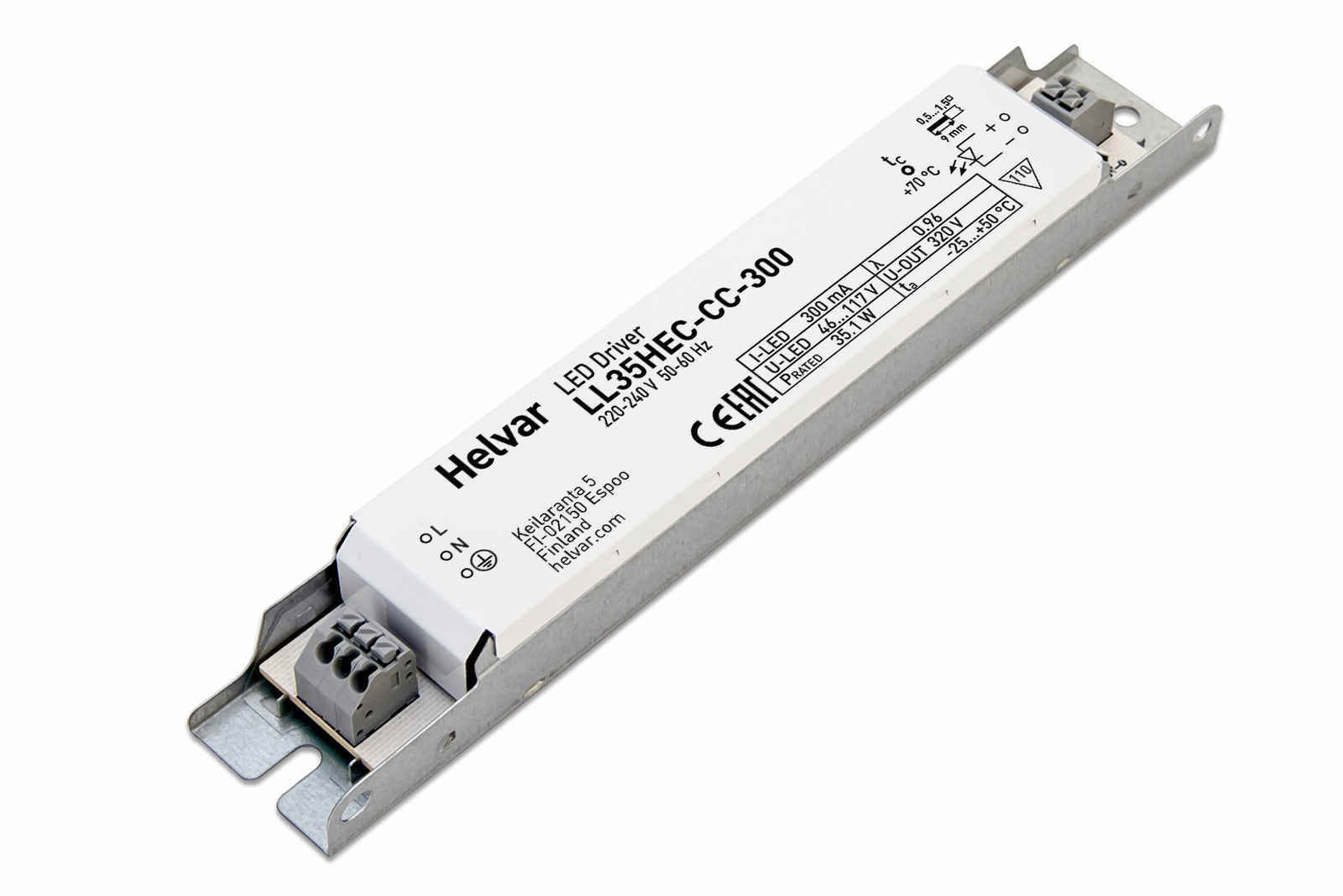

LL35HEC-CC-300 (Discontinued)
35 W constant current LED driver
- 300 mA fixed current output
- Product number: 5821005
- Dimensions: 230 x 21 x 30 mm
- LED Driver family: HEC Series
35 W constant current LED driver
| Output | Fixed current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 35.1 |
| Efficiency up to (%) | 90 |
| Power factor at full load | 0.96 |
| Min | Max | ||
|---|---|---|---|
| Iout | 300 | ||
| Uout | 46 – 117 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| Max temperature at tc point (°C) | 70 |
| Ambient temperature range | –25 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Optional click-on strain relief for installation | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |
| Compatible products |
|---|
