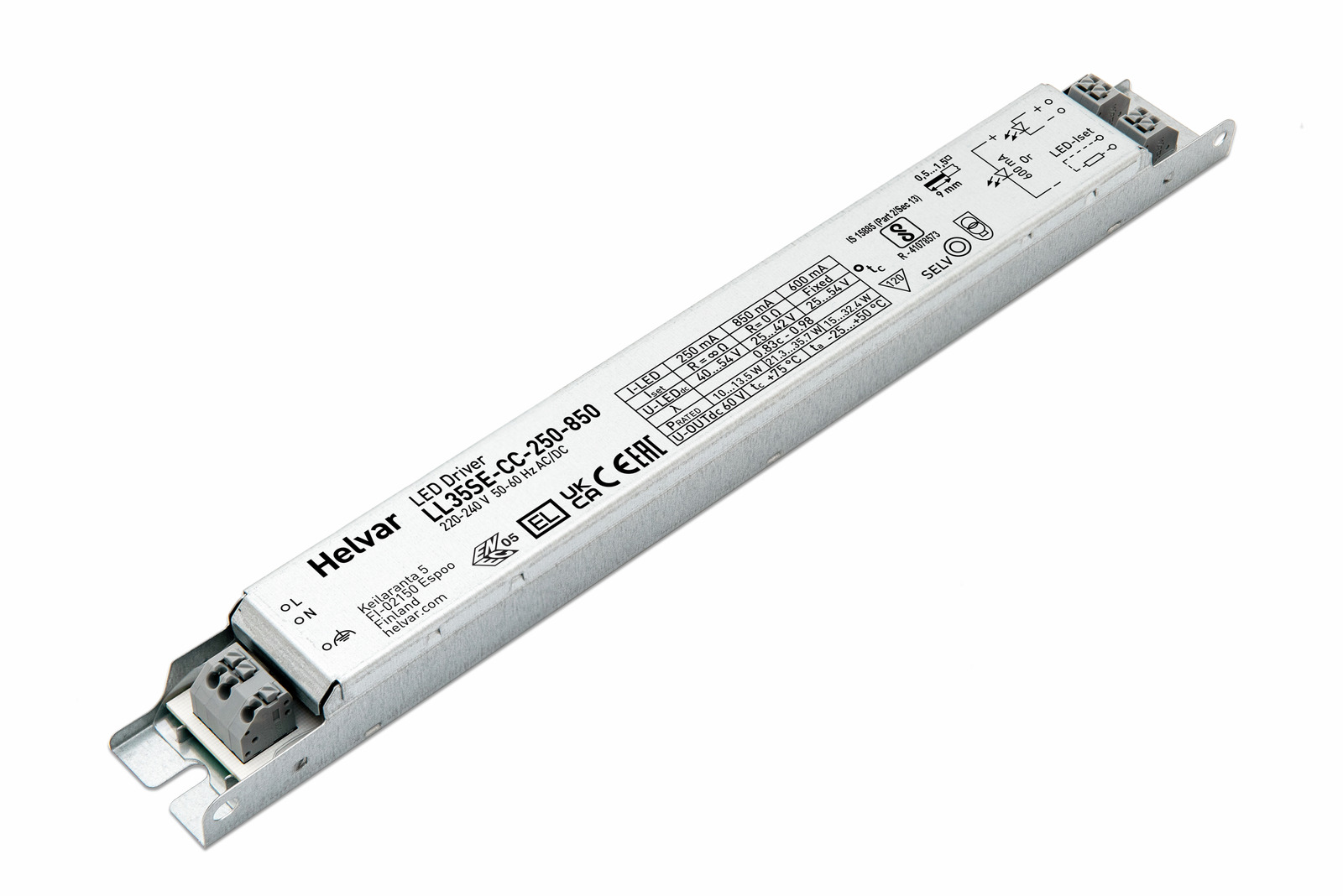

LL35SE-CC-250-850
35 W constant current LED driver
- 250 mA – 850 mA adjustable current output
- Product number: 5738001
- Dimensions: 280 x 21 x 30 mm
- LED Driver family: SE Series
35 W constant current LED driver
| Output | Adjustable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 35 |
| Efficiency up to (%) | 89 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 250 | 850 | |
| Uout | 40-54 | 25-42 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –25 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Optional click-on strain relief for installation | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |
| Current setting resistors | ✓ |
| Certificates |
|
|---|
| Order code | Description |
|---|---|
| 5738001 | LL35SE-CC-250-850 10/2000 |
