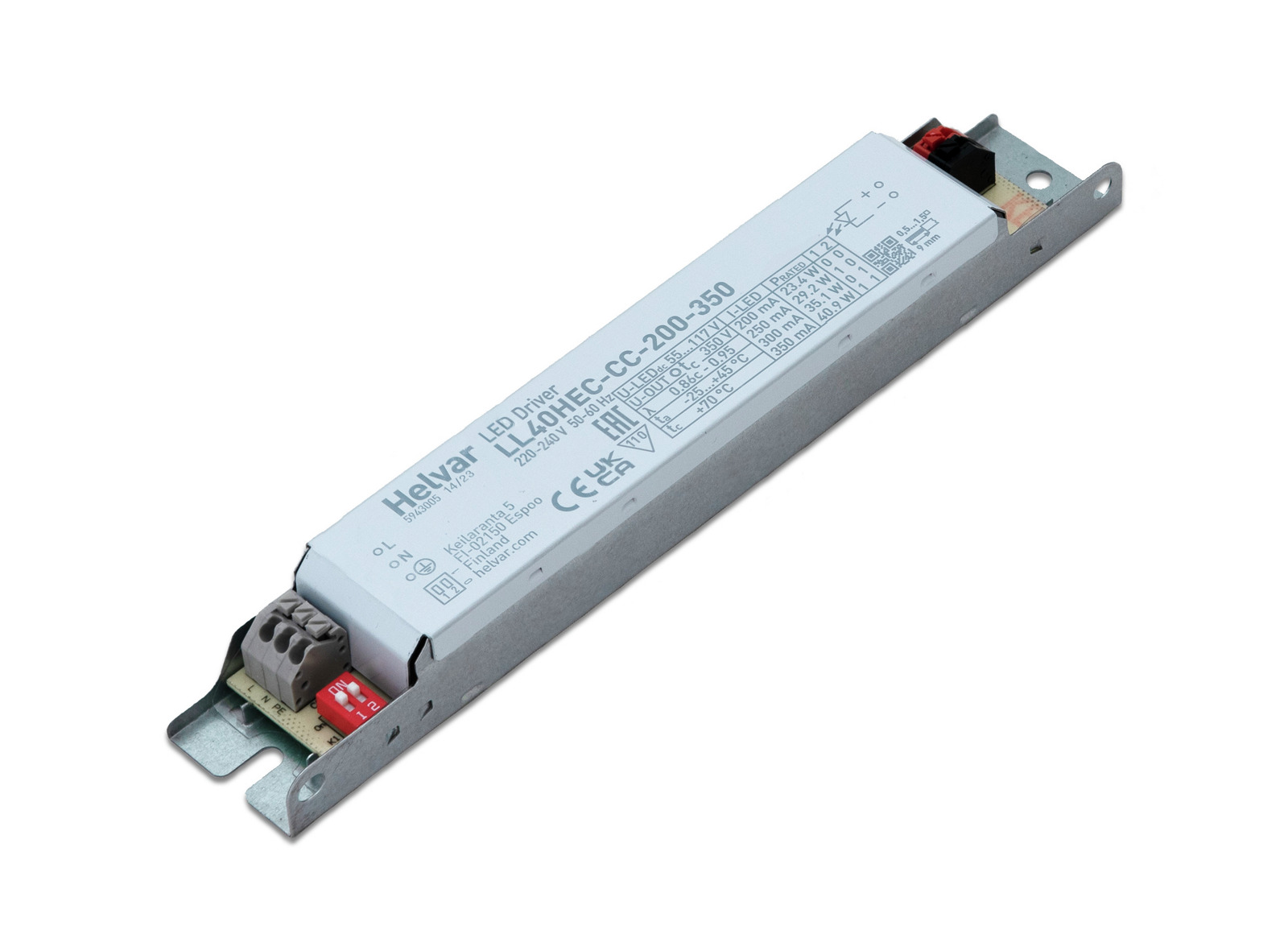

LL40HEC-CC-200-350
40 W constant current LED driver
- 200/250/300/350 mA DIP switch selectable currents output
- Product number: 5943005
- Dimensions: 190 x 21 x 30 mm
- LED Driver family: HEC Series
40 W constant current LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 41 |
| Power factor at full load | 0.95 |
| Efficiency up to (%) | 90 |
| Total Harmonic Distortion @ Full power (THD %) | 8 |
| Min | Max | ||
|---|---|---|---|
| Iout | 200 | 350 | |
| Uout | 55 – 117 | 55 – 117 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 70 |
| Ambient temperature range | –25 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|
| Certificates |
|
|---|
| Order code | Description |
|---|---|
| 5943005 | LL40HEC-CC-200-350 10/2000 |
