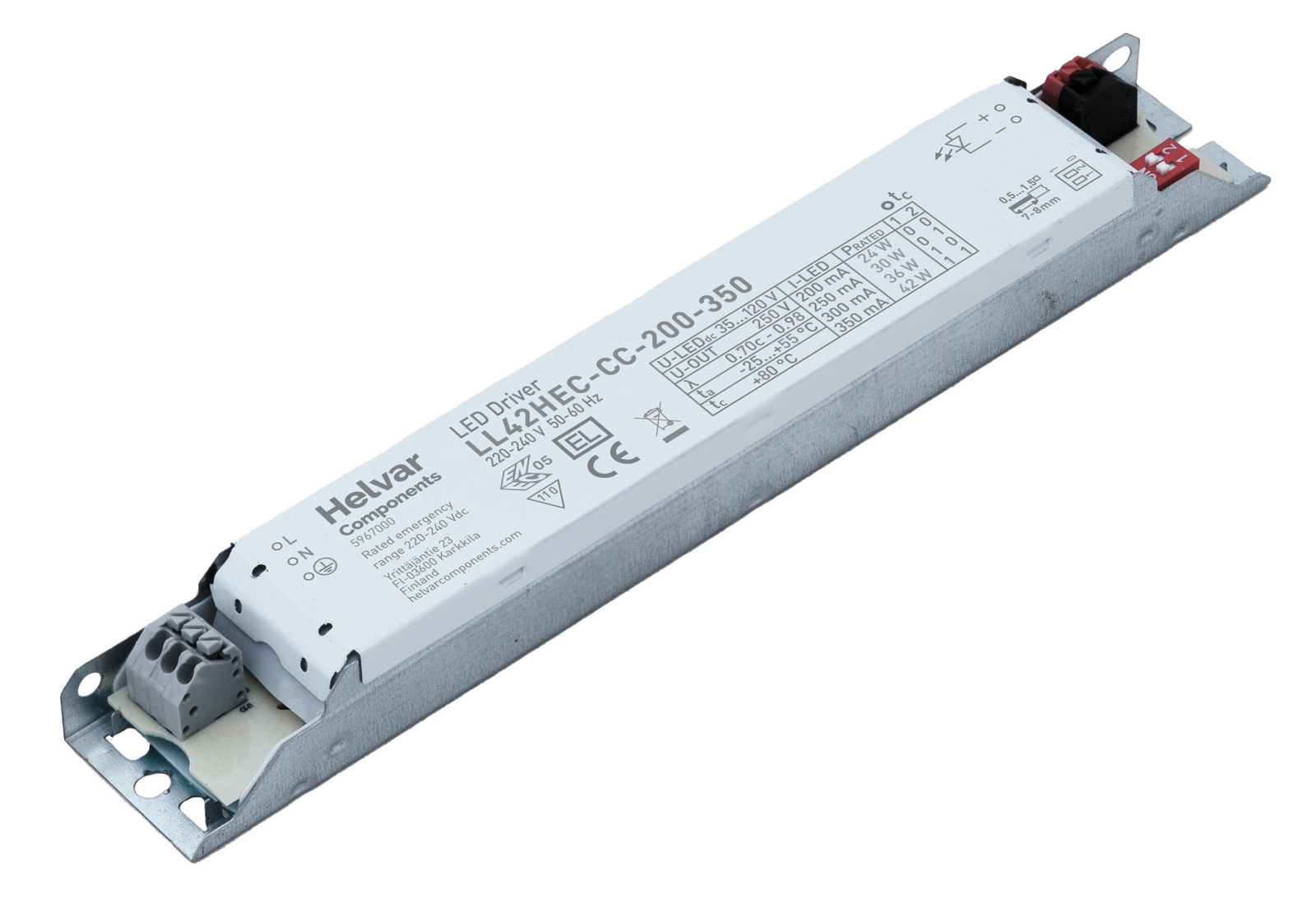

LL42HEC-CC-200-350
42 W constant current LED driver
- 200/250/300/350 mA DIP switch selectable currents output
- Product number: 5967000
- Dimensions: 208 x 21 x 30 mm
- LED Driver family: HEC Series
42 W constant current LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 42 |
| Total Harmonic Distortion @ Full power (THD %) | 10 |
| Power factor at full load | 0.95 |
| Efficiency up to (%) | 92 |
| Min | Max | ||
|---|---|---|---|
| Iout | 200 | 350 | |
| Uout | 35 – 120 | 35 – 120 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 80 |
| IP Rating | 20 |
| Ambient temperature range | –25 °C .. +55 °C |
| Lifetime up to (h) | 100000 |
| Luminaire class II | ✓ |
| Luminaire class I | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|
| Certificates |
|
|---|
| Order code | Description |
|---|---|
| 5967000 | LL42HEC-CC-200-350 |
