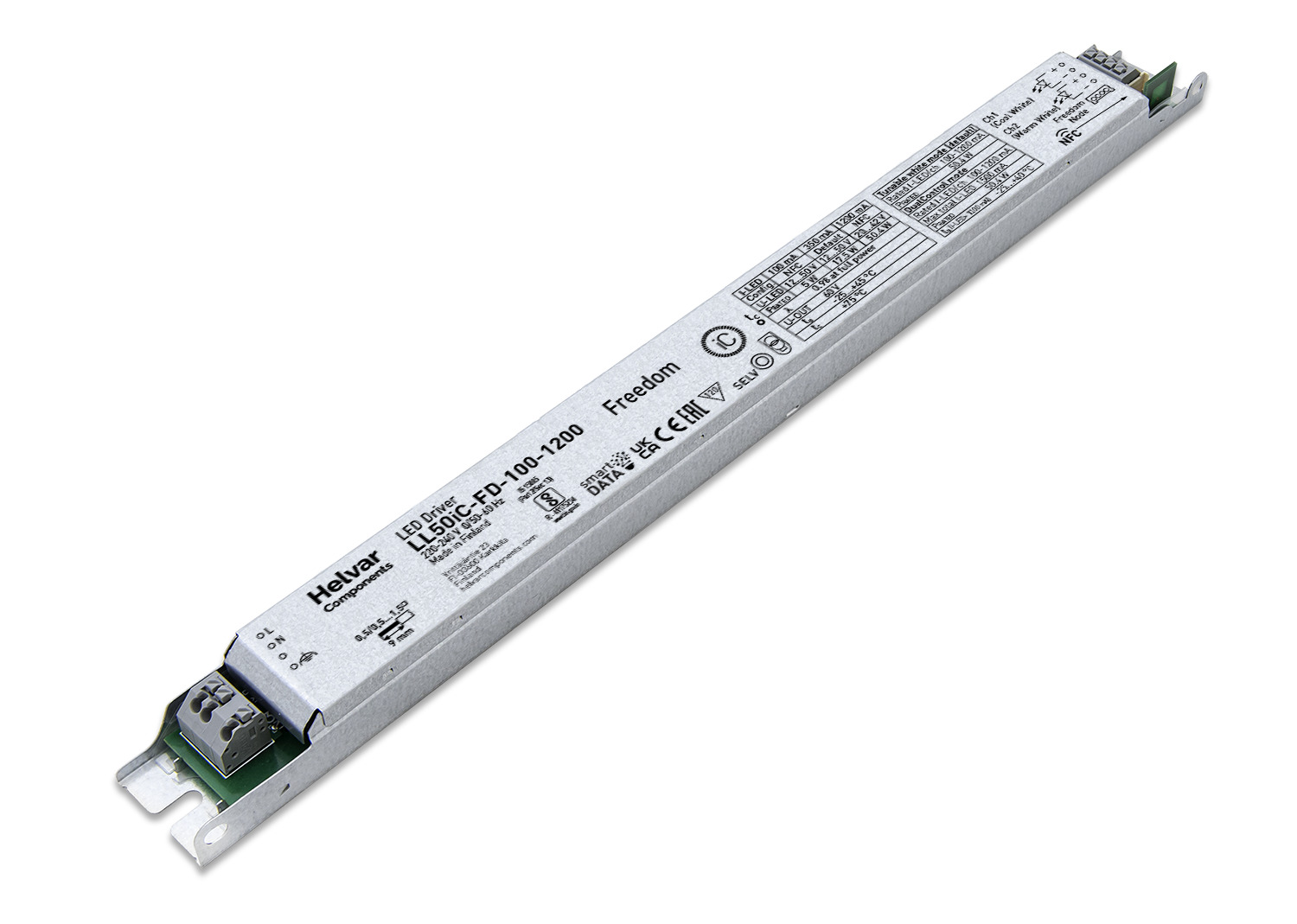

LL50iC-FD-100-1200

50 W 2-Channel Tunable White Freedom controllable LED driver

  • 100 mA - 1200 mA adjustable current output
  • Product number: 5778000
  • Dimensions: 360 x 30 x 21 mm
  • LED Driver family: Freedom Wireless
  • Main features: TunableWhite, Freedom, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

50

Efficiency up to (%)

88

Power factor at full load

0.98

MinMax
Iout1001200
Uout12-5020-42

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176-280

Max temperature at tc point (°C)

75

Ambient temperature range

–25 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control


Freedom
Tunable White

Dimming range

2% – 100%

Dimming method

Amplitude Dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Smar data memory bank and tunable white & dual-channel lighting control in the wireless fashion

NTC✓
Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓
Smart data

Luminaire data, Energy monitoring, Maintenance & diagnostics

CLO✓
NFC✓

More information

Certificates

BIS

Compatible products

Compatible products

Freedom Cables, LL-SR-NFC

Compatible Wireless Systems

ActiveAhead, Casambi, Mount Kelvin, Mymesh by Chess, Pulse Systems

Order codes

Order codeDescription
5778000LL50iC-FD-100-1200
