LL50SE-CC-350-1400-NFC
50 W constant current LED driver
- 350 mA – 1400 mA adjustable current output
- Product number: 5771001

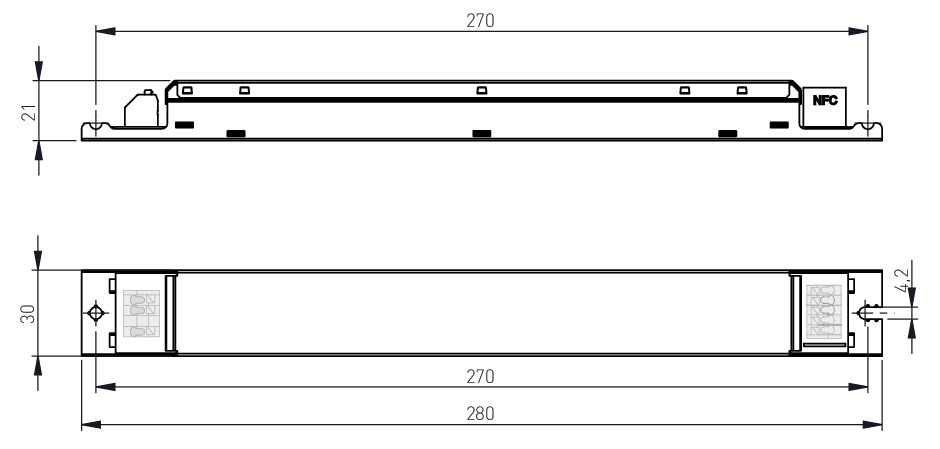

- Dimensions: 280 x 21 x 30 mm
- LED Driver family: SE Series
50 W constant current LED driver
| Output | Adjustable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 50 |
| Efficiency up to (%) | 89 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 1400 | |
| Uout | 33–54 | 25-36 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –25 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| NFC | ✓ |
| Certificates |
|
|---|
| Order code | Description |
|---|---|
| 5771001 | LL50SE-CC-350-1400-NFC 10/1920 |
