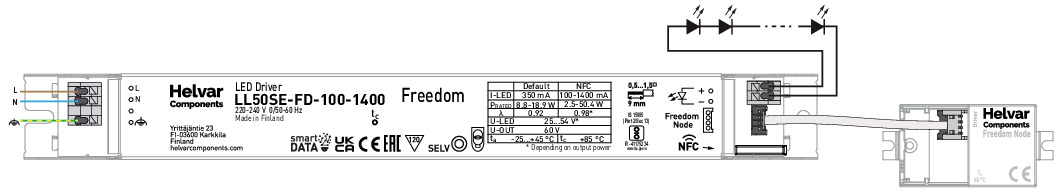

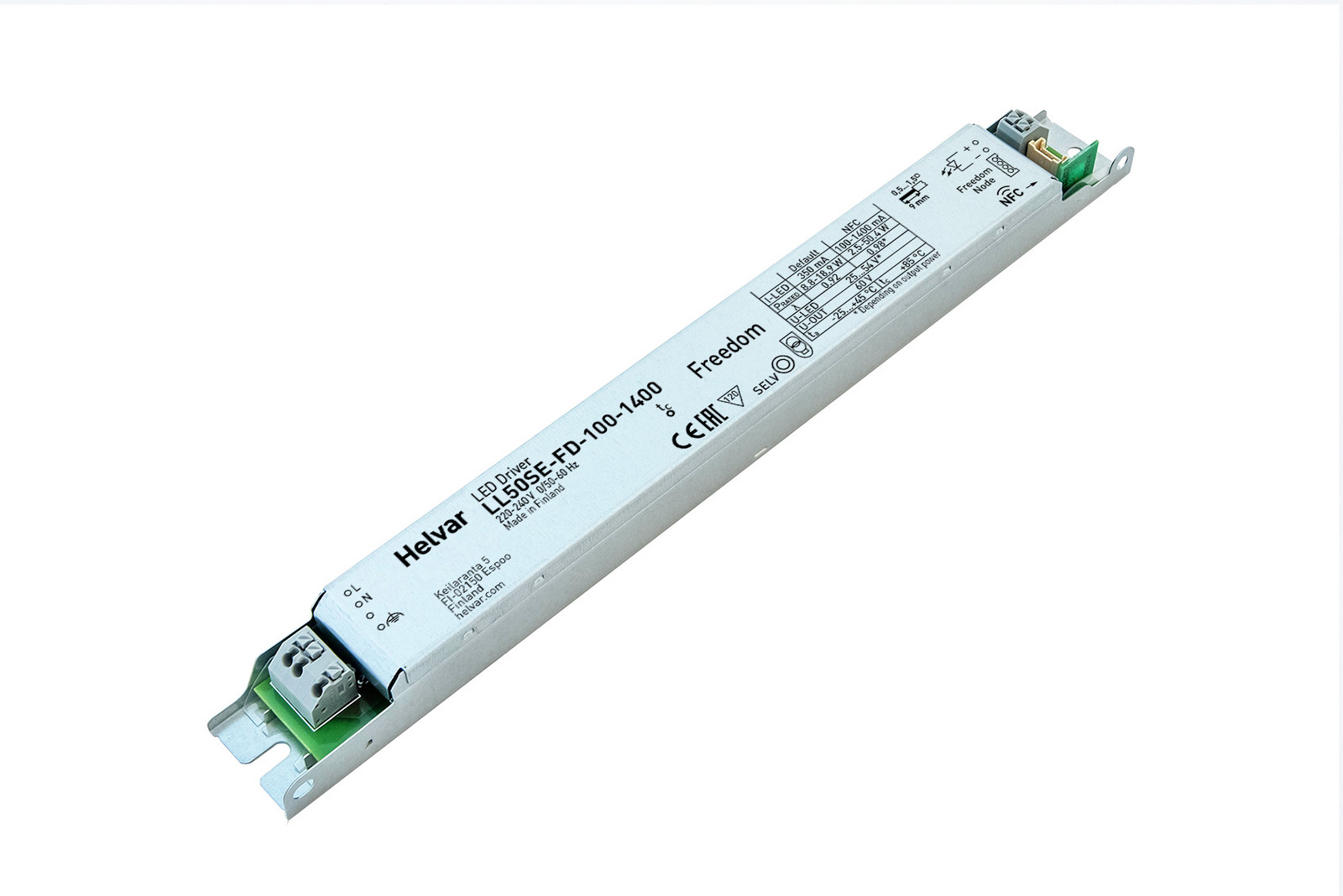

LL50SE-FD-100-1400

50 W Freedom controllable LED driver

  • 100 mA – 1400 mA adjustable current output
  • Product number: 5776000
  • Dimensions: 280 x 30 x 21 mm
  • LED Driver family: Freedom Wireless
  • Main features: Freedom, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

50.4

Efficiency up to (%)

88

Power factor at full load

0.98

MinMax
Iout1001400
Uout25 – 5425 – 36

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–280

Max temperature at tc point (°C)

85

Ambient temperature range

–25 °C .. +45 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

Freedom

Dimming range

1% – 100%

Dimming method

Amplitude Dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Smart data memory bank. Supports Freedom compatible wireless lighting control technologies: Helvar ActiveAhead, Casambi, Mount Kelvin, Mymesh, Ingy, Wirepas.

NTC✓
Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓
Smart data

Luminaire data, Energy monitoring, Maintenance & diagnostics

NFC✓

More information

Certificates

BIS

Compatible products

Compatible products

Freedom Cables, LL-SR-NFC

Compatible Wireless Systems

ActiveAhead, Casambi, Mount Kelvin, Mymesh by Chess, Pulse Systems

Order codes

Order codeDescription
5776000LL50SE-FD-100-1400
