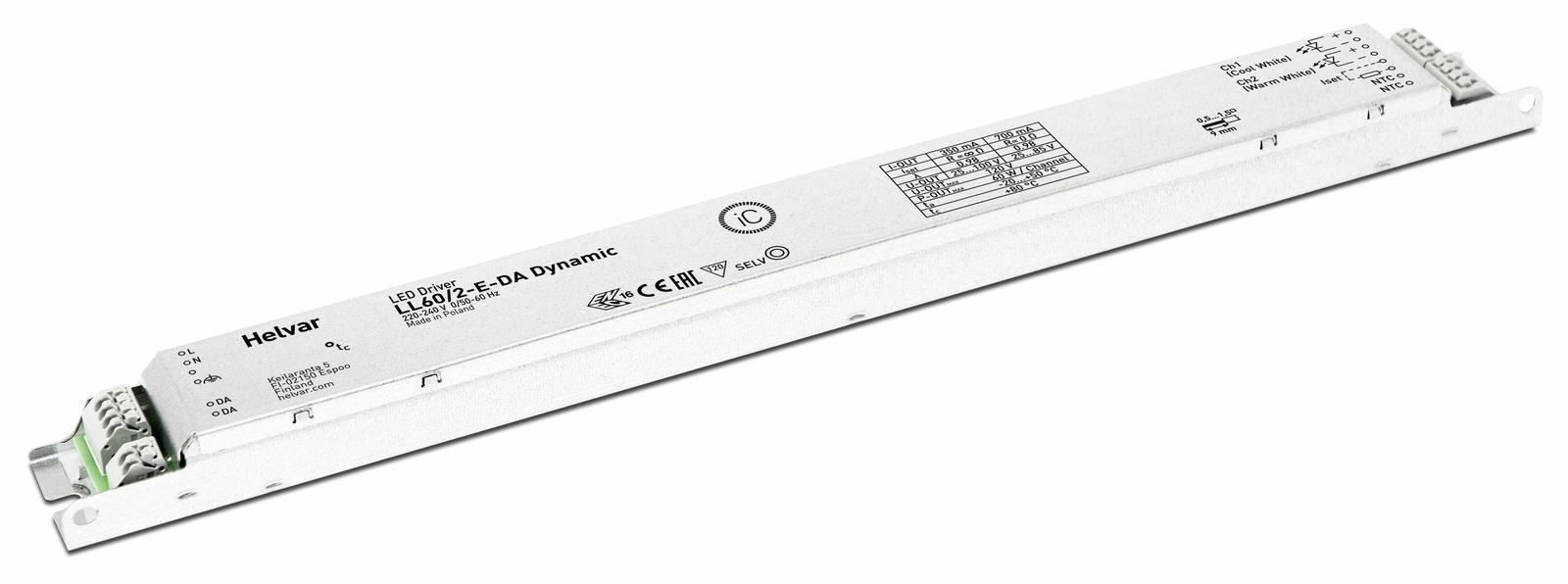

LL60-2CH-E-DA-iC Dynamic (Discontinued)
LL60-2CH-E-DA-iC Dynamic (Discontinued) - Image 2

LL60-2CH-E-DA-iC Dynamic (Discontinued)

60/2 W Dynamic LED driver

  • 350 mA – 700 mA adjustable current output
  • Dimensions: 380 x 35 x 21 mm
  • LED Driver family: iC Series
  • Main features: TunableWhite

Specifications

Output

Output

Adjustable current

Load protection

SELV120

Max output power (W)

60

Efficiency up to (%)

90

Power factor at full load

0.98

MinMax
Iout350700
Uout25–10025–85

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–280

Max temperature at tc point (°C)

75

Ambient temperature range

–20 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class III✓

Control

Control

Tunable White

Dimming range

1% – 100%

Features

Optional click-on strain relief for installation✓

More information

Certificates


ENEC
CB

Compatible products

Compatible products

LL1x2135-SR
