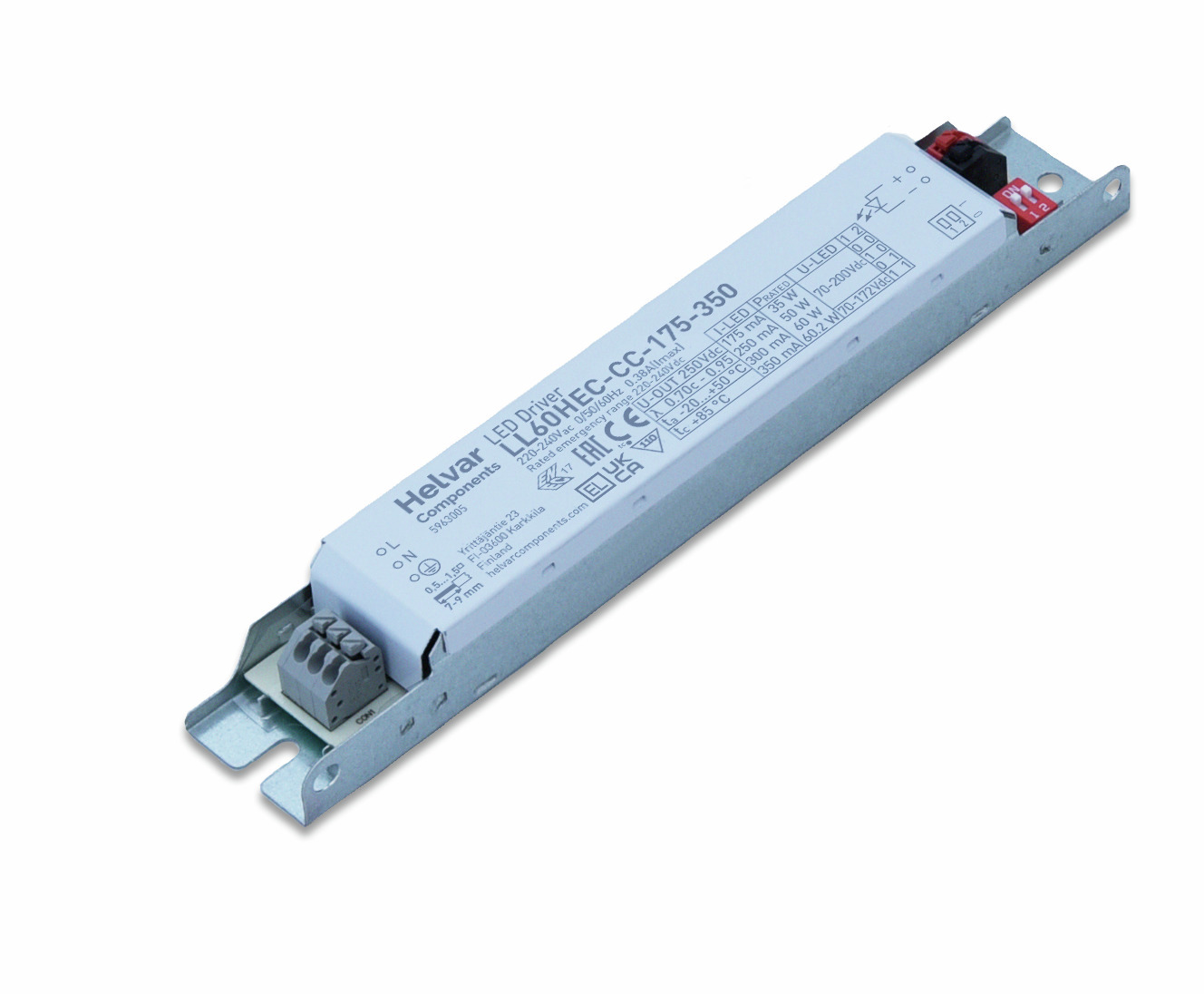

LL60HEC-CC-175-350
LL60HEC-CC-175-350 - Image 2
LL60HEC-CC-175-350 - Image 3
LL60HEC-CC-175-350 - Image 4

LL60HEC-CC-175-350

60 W constant current LED driver

  • 175/250/300/350 mA DIP switch selectable currents output
  • Product number: 5963005
  • Dimensions: 190 x 21 x 30 mm
  • LED Driver family: HEC Series
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

Non-isolated

Max output power (W)

60

Power factor at full load

0.95

Efficiency up to (%)

92

MinMax
Iout175350
Uout70 - 20070 - 172

Input & Operating Conditions

Voltage range (VAC)

198-268

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176-280

Max temperature at tc point (°C)

85

IP Rating

IP20

Ambient temperature range

–20 °C .. +50 °C

Lifetime up to (h)

60000

Luminaire class II✓
Luminaire class I✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓

More information

Certificates


ENEC
EL

Order codes

Order codeDescription
5963005LL60HEC-CC-175-350 10/2000
