LL65HE-CC-200-450-DS
65 W constant current LED driver
- 200/250/300/350/400/450 mA DIP switch selectable currents output
- Product number: 5826001

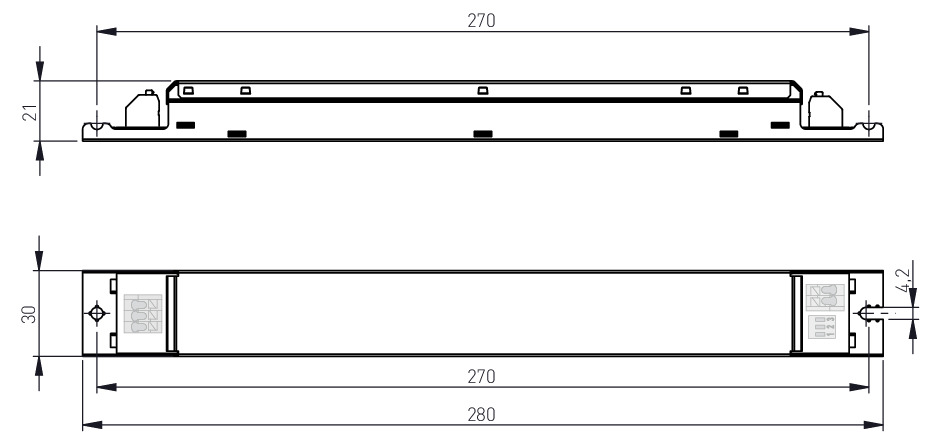

- Dimensions: 280 x 21 x 30 mm
- LED Driver family: HE Series
65 W constant current LED driver
| Output | DIP switch selectable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 65.3 |
| Power factor at full load | 0.98 |
| Efficiency up to (%) | 94 |
| Total Harmonic Distortion @ Full power (THD %) | 10 |
| Min | Max | ||
|---|---|---|---|
| Iout | 200 | 450 | |
| Uout | 70 – 220 | 50 – 145 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –25 °C .. +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|
| Certificates |
|
|---|
