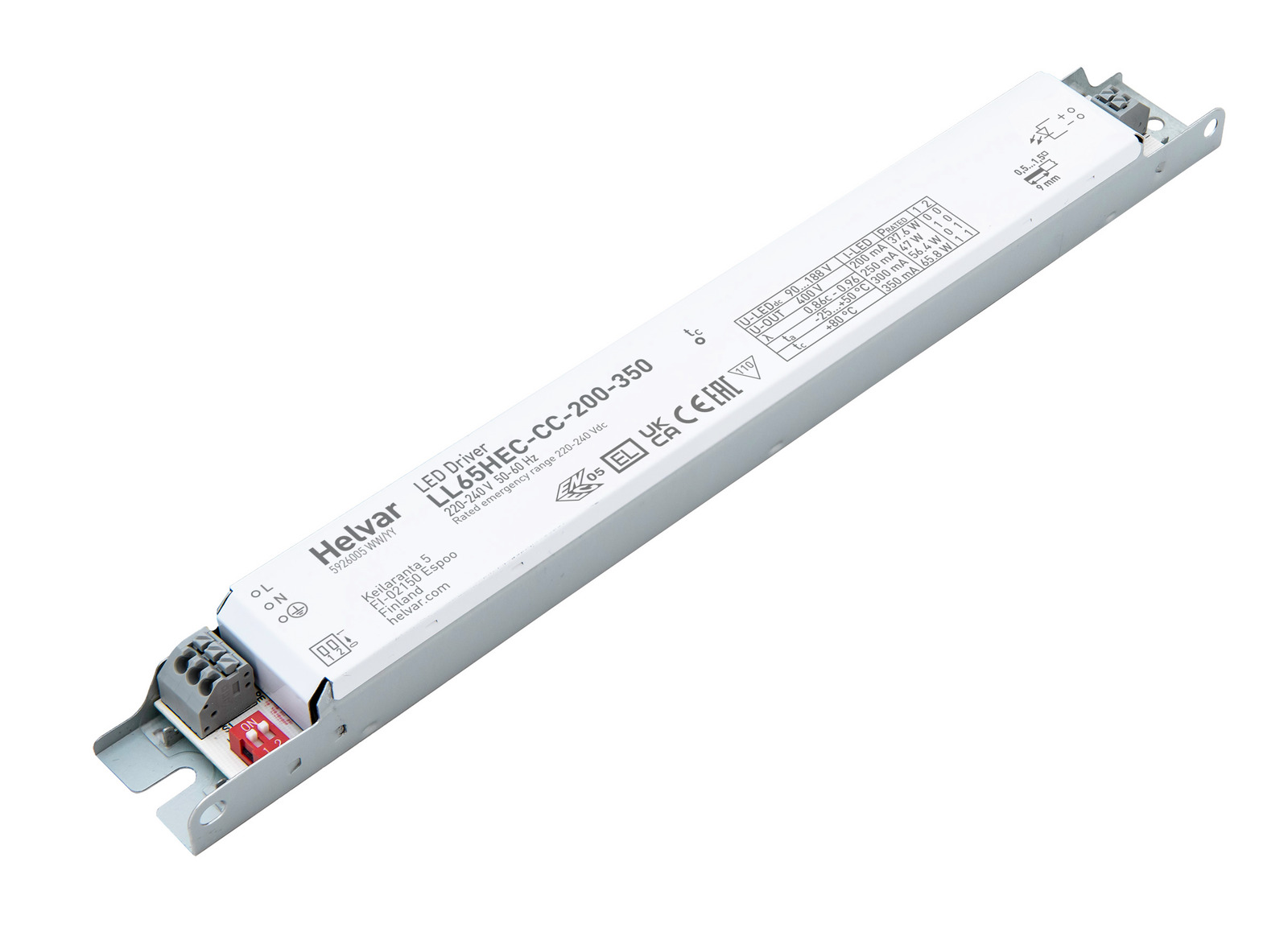

LL65HEC-CC-200-350 (Discontinued)
LL65HEC-CC-200-350 (Discontinued) - Image 2
LL65HEC-CC-200-350 (Discontinued) - Image 3

LL65HEC-CC-200-350 (Discontinued)

65 W constant current LED driver

  • 200/250/300/350 mA DIP switch selectable currents output
  • Product number: 5926005
  • Dimensions: 280 x 21 x 30 mm
  • LED Driver family: HEC Series
  • Replacing product: LL60HEC-CC-200-350
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

Non-isolated

Max output power (W)

65.8

Efficiency up to (%)

93

Power factor at full load

0.96

MinMax
Iout200350
Uout90 – 18890 – 188

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176-280

Max temperature at tc point (°C)

80

Ambient temperature range

–25 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

50000

Luminaire class I✓
Luminaire class II✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓

More information

Certificates


CB
EL
ENEC

Order codes

Order codeDescription
5926005LL65HEC-CC-200-350 10/2000
