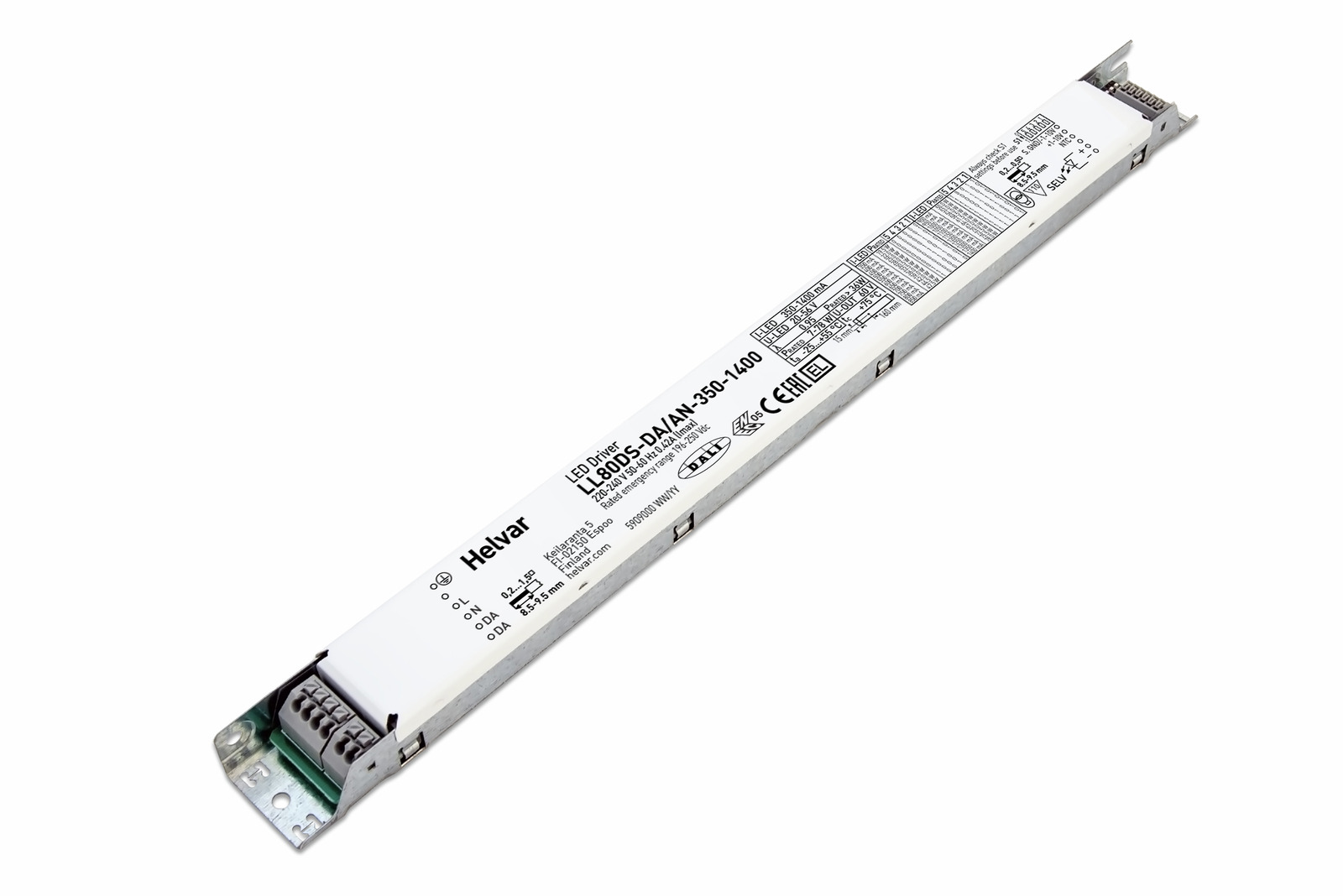

LL80DS-DA-AN-350-1400
LL80DS-DA-AN-350-1400 - Image 2

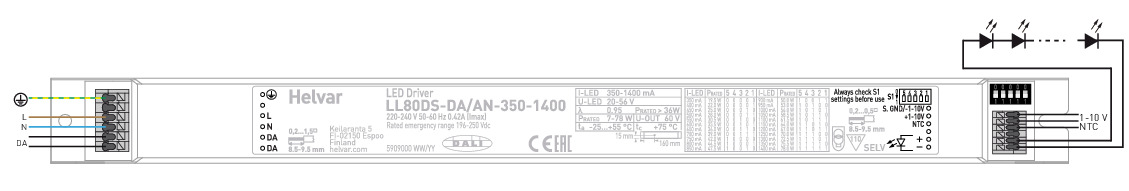

LL80DS-DA-AN-350-1400 - Image 3

LL80DS-DA-AN-350-1400

80 W DALI / 1 – 10 V dimmable LED driver

  • 350 mA – 1400 mA adjustable current output
  • Product number: 5909000
  • Dimensions: 359 x 30 x 21 mm
  • LED Driver family: Other drivers
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

80

Efficiency up to (%)

91

Power factor at full load

0.95

MinMax
Iout3501400
Uout20–5620–56

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176-275

Max temperature at tc point (°C)

75

Ambient temperature range

–25 °C .. +55 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class III✓

Control

Control


1-10 V
DALI

Dimming range

1% – 100%

Dimming method

Amplitude Dimming

Features

Intelligent features

Current setting by software

NTC✓
Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓

Compatible products

Compatible products

LL-SR-NFC

Order codes

Order codeDescription
5909000LL80DS-DA/AN-350-1400 30
