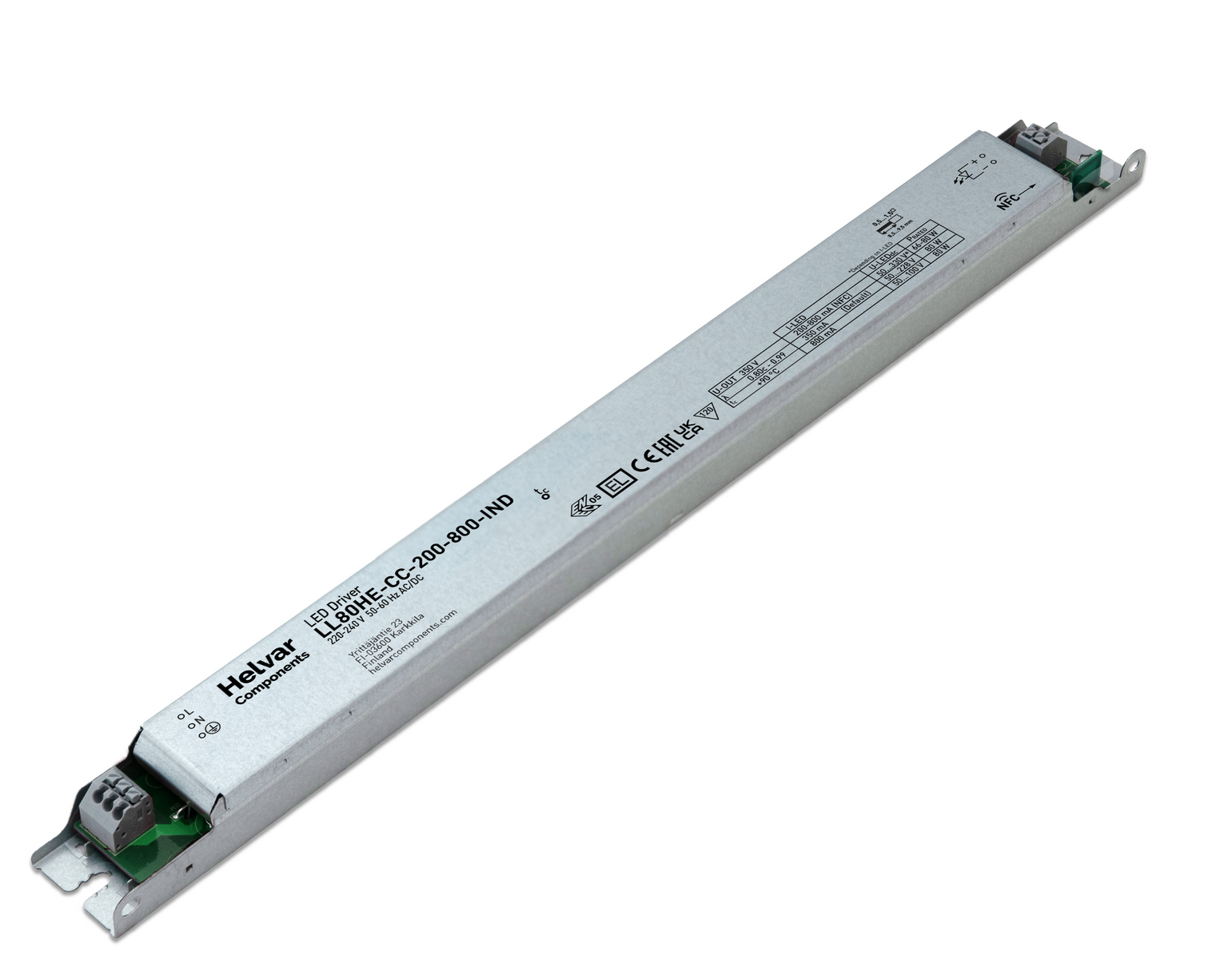

LL80HE-CC-200-800-IND
80 W constant current Industrial LED driver
- 200 mA – 800 mA constant current output
- Product number: 5752001

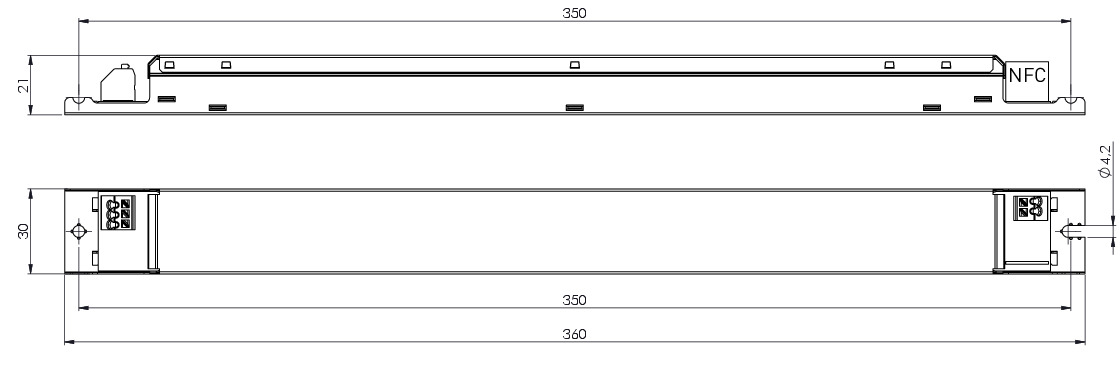

- Dimensions: 360 x 30 x 21 mm
- LED Driver family: HE-IND Series
80 W constant current Industrial LED driver
| Output | Adjustable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 80 |
| Power factor at full load | 0.99 |
| Efficiency up to (%) | 93 |
| Total Harmonic Distortion @ Full power (THD %) | 10 |
| Min | Max | ||
|---|---|---|---|
| Iout | 200 | 800 | |
| Uout | 75-330 | 50-100 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–281 |
| Max temperature at tc point (°C) | 90 |
| Ambient temperature range | –40 °C .. +70 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Helvar Driver Configurator support | ✓ |
|---|---|
| Intelligent features | Current setting by software, Constant Light Output (CLO), Wireless NFC programming |
| Complies with IEEE 1789-2015 | ✓ |
| CLO | ✓ |
| NFC | ✓ |
| Certificates |
|
|---|
| Order code | Description |
|---|---|
| 5752001 | LL80HE-CC-200-800-IND |
