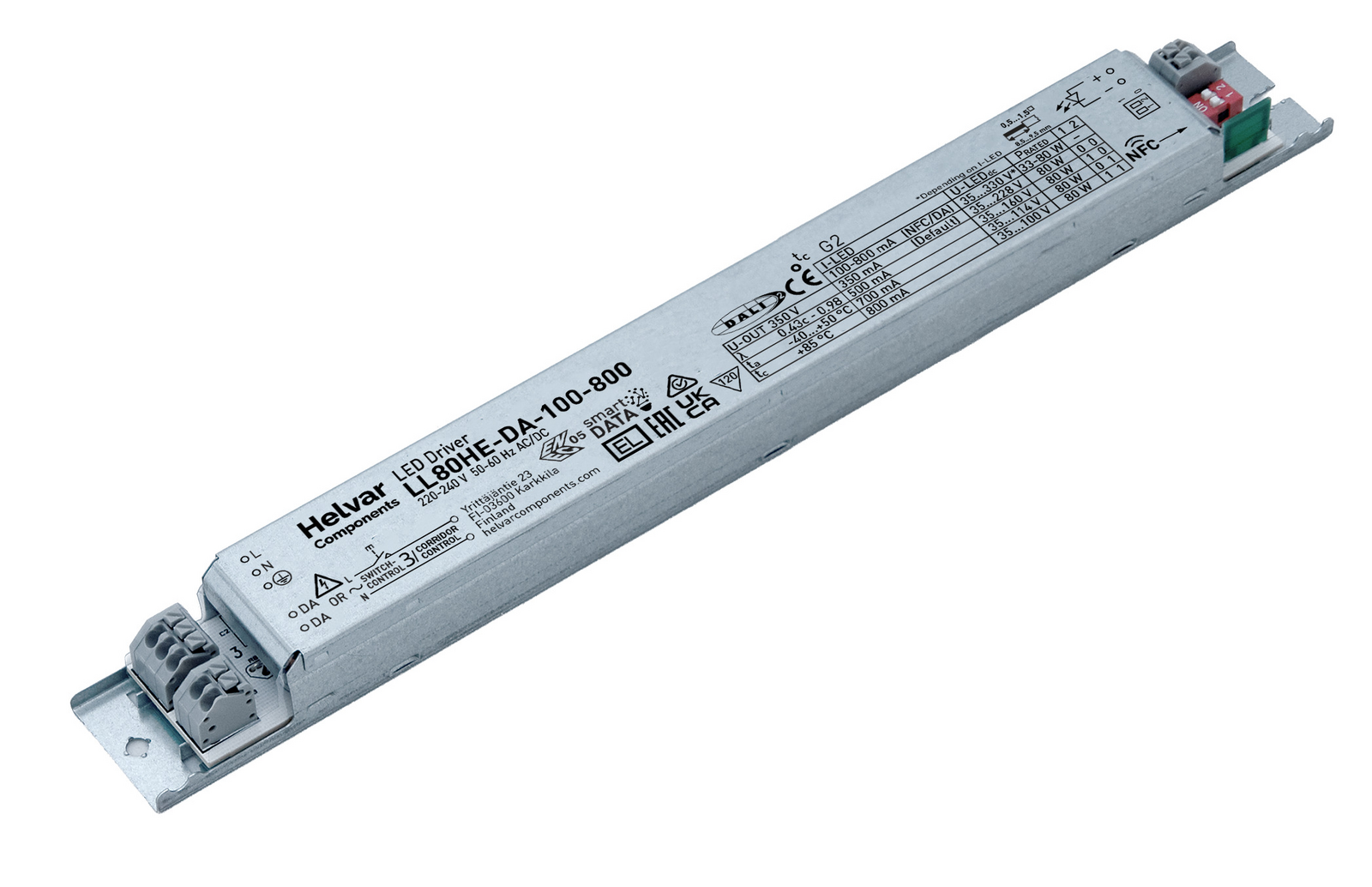

LL80HE-DA-100-800

80 W DALI-2 dimmable LED driver

  • 100 mA – 800 mA adjustable current output
  • Product number: 5758001

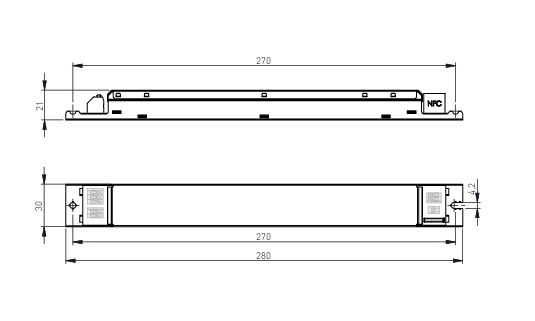

  • Dimensions: 280 x 30 x 21 mm
  • LED Driver family: HE Series
  • Main features: DALI, Amplitude, SMARTSWITCH
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

Non-isolated

Max output power (W)

80

Efficiency up to (%)

93

Power factor at full load

0.98

MinMax
Iout100800
Uout35 – 32035 – 100

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176–281

Max temperature at tc point (°C)

85

Ambient temperature range

–40 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Control


Corridor Control
DALI-2

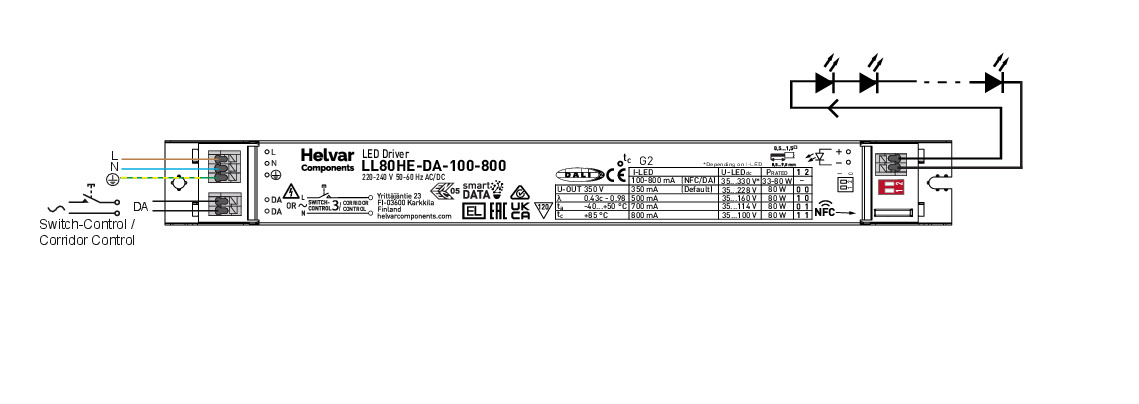

Switch-Control 2

Dimming range

1% - 100%

Dimming method

Amplitude Dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Current setting by software, Constant Light Output (CLO), Smart Data (DALI Parts 251-253), Corridor Control, Internal Thermal Protection, Wireless NFC programming, DIP switch & Smart Switch

Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓
Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

Smart Switch✓
CLO✓
NFC✓

More information

Certificates


CB
EL
ENEC
BIS

Compatible products

Compatible products

LL-SR-NFC

Order codes

Order codeDescription
5758001LL80HE-DA-100-800 10/1920
