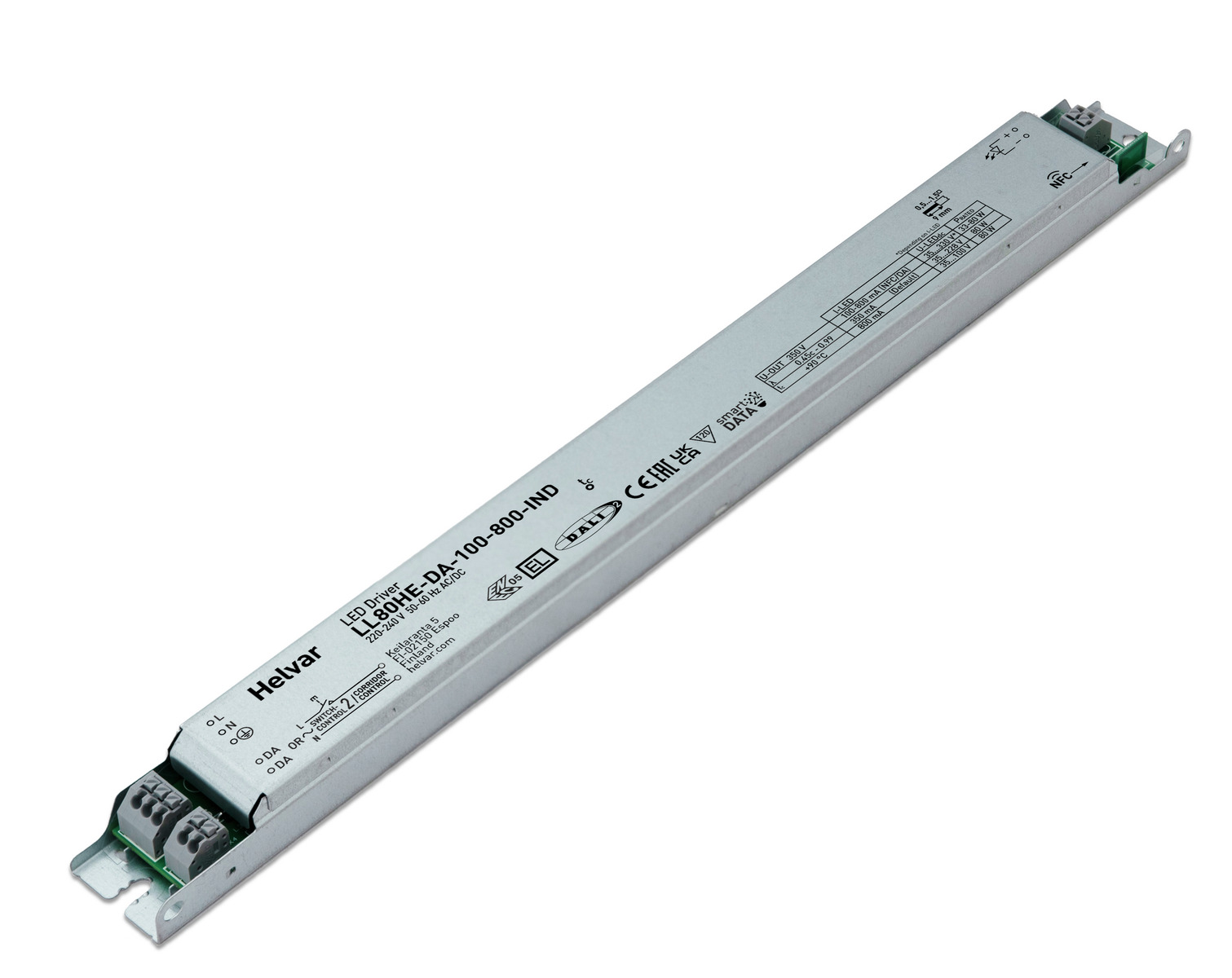

LL80HE-DA-100-800-IND
LL80HE-DA-100-800-IND - Image 2
LL80HE-DA-100-800-IND - Image 3

LL80HE-DA-100-800-IND

80 W DALI-2 dimmable Industrial LED driver

  • 100 mA – 800 mA adjustable current output
  • Product number: 5753001

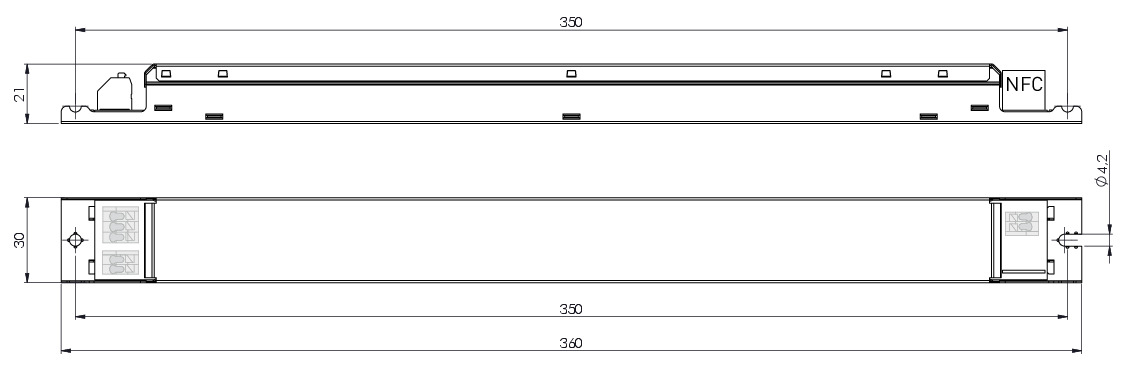

  • Dimensions: 360 x 30 x 21 mm
  • LED Driver family: HE-IND Series
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

Non-isolated

Max output power (W)

80

Power factor at full load

0.99

Efficiency up to (%)

93

Total Harmonic Distortion @ Full power (THD %)

9

MinMax
Iout100800
Uout35-33035-100

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–281

Max temperature at tc point (°C)

90

Ambient temperature range

–40 °C .. +70 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Dimming range

1% - 100%

Control


Corridor Control
DALI-2

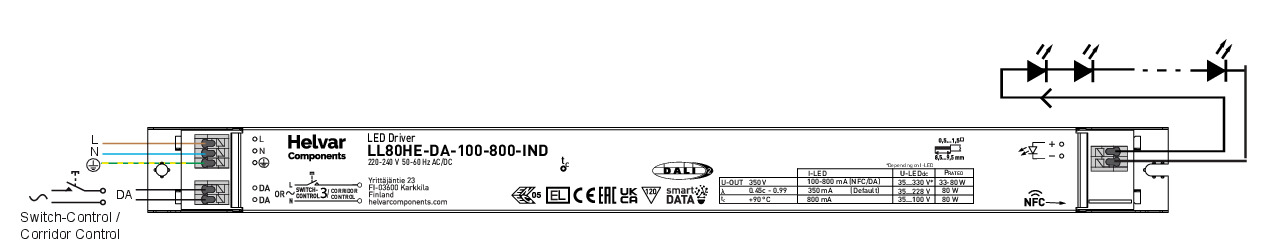

Switch-Control 2

Dimming method

Amplitude Dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Current setting by software, Constant Light Output (CLO), Smart Data (DALI Parts 251-253), Corridor Control, Internal Thermal Protection, Wireless NFC programming

Complies with IEEE 1789-2015✓
Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

CLO✓
NFC✓

More information

Certificates


ENEC
CB
EL
