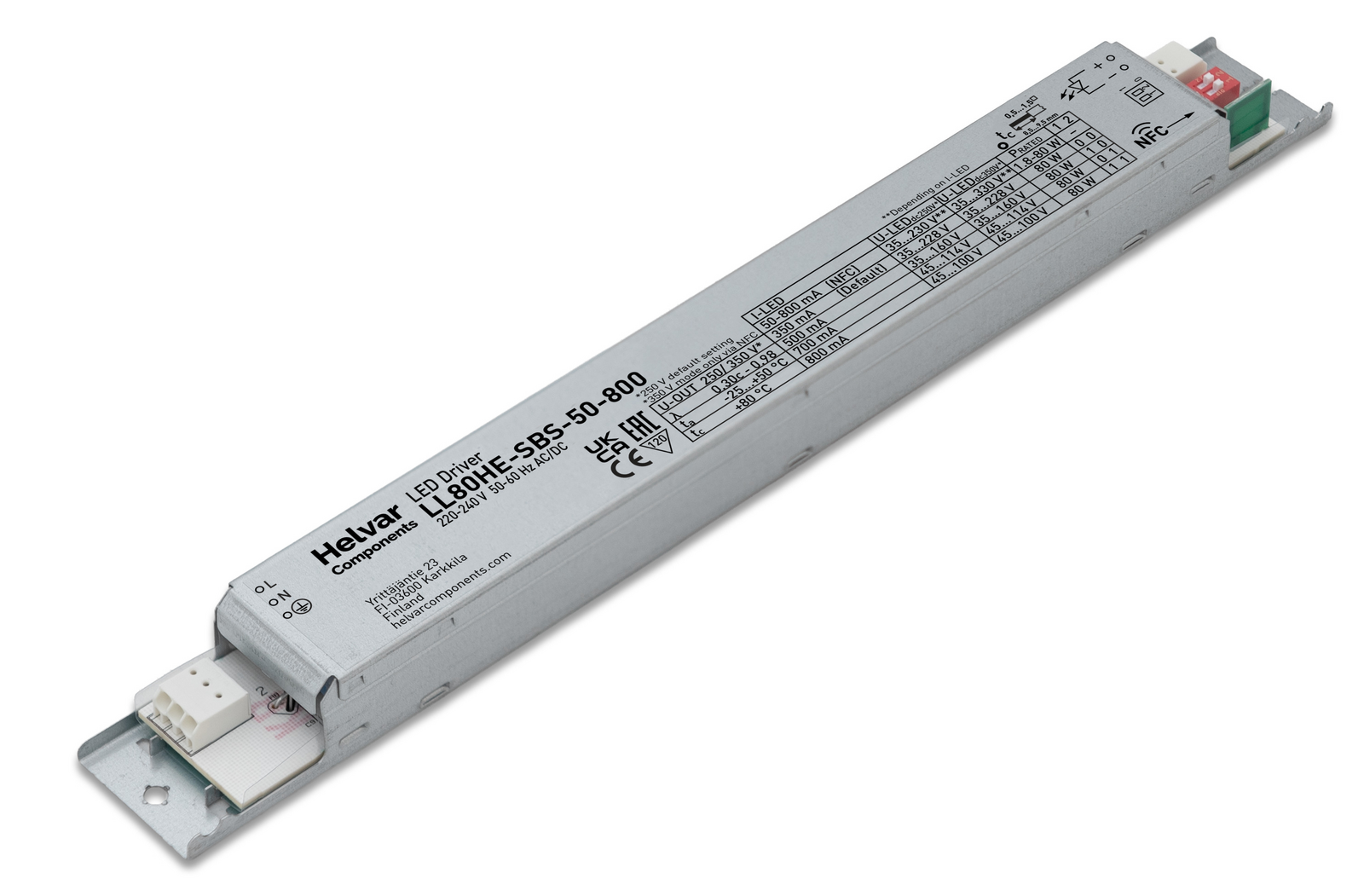

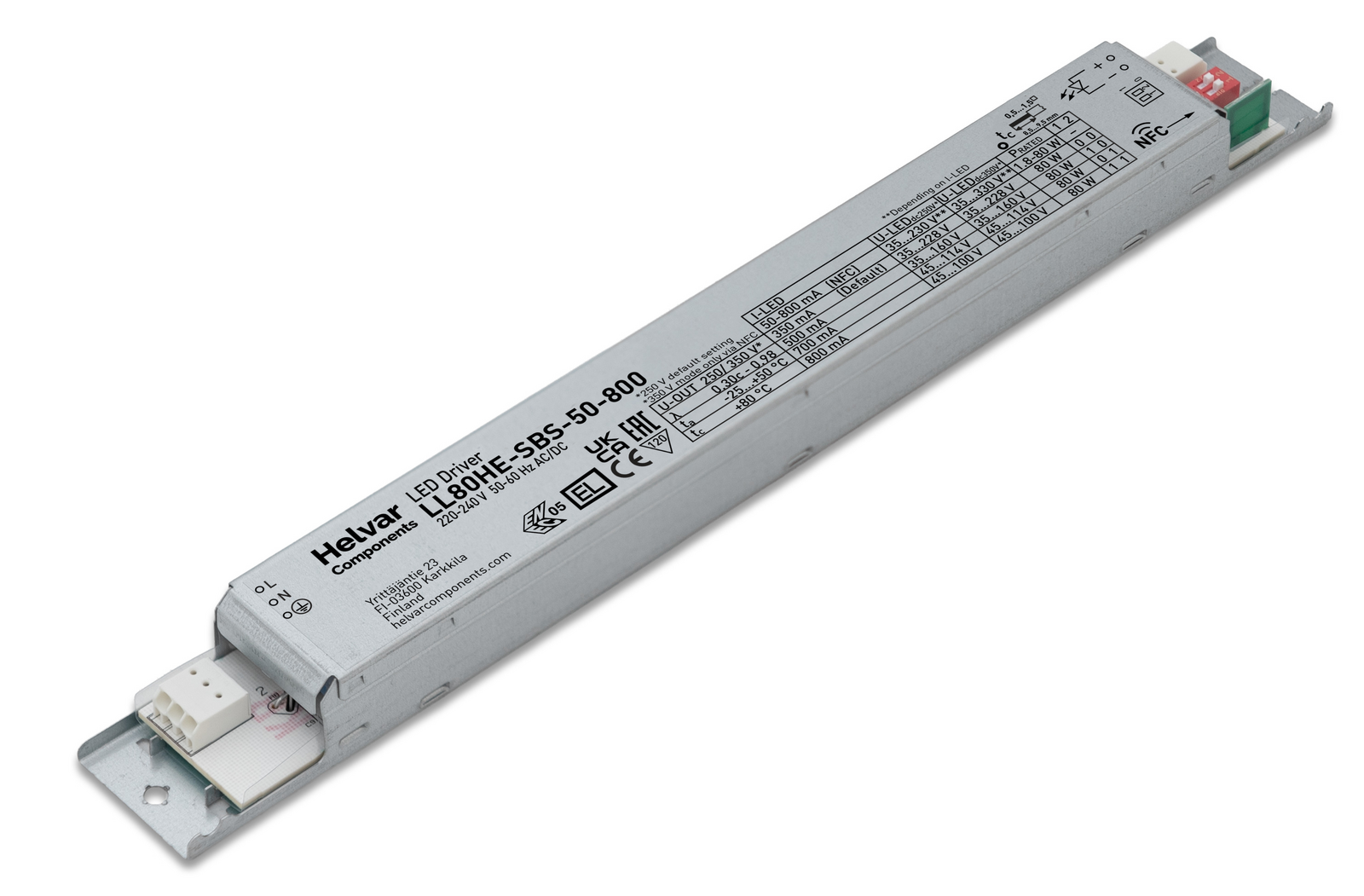

80 W on/off Smart BiSwitchable LED driver with market-leading efficiency up to 96.5 %
| Output | Adjustable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 80 |
| Power factor at full load | 0.98 |
| Efficiency up to (%) | 96.5 |
| Total Harmonic Distortion @ Full power (THD %) | 6 |
| Min | Max | ||
|---|---|---|---|
| Iout | 50 | 800 | |
| Uout | 35-330 | 45-100 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 80 |
| Ambient temperature range | –25 °C ... +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class II | ✓ |
| Luminaire class I | ✓ |
| Control |
|
|---|

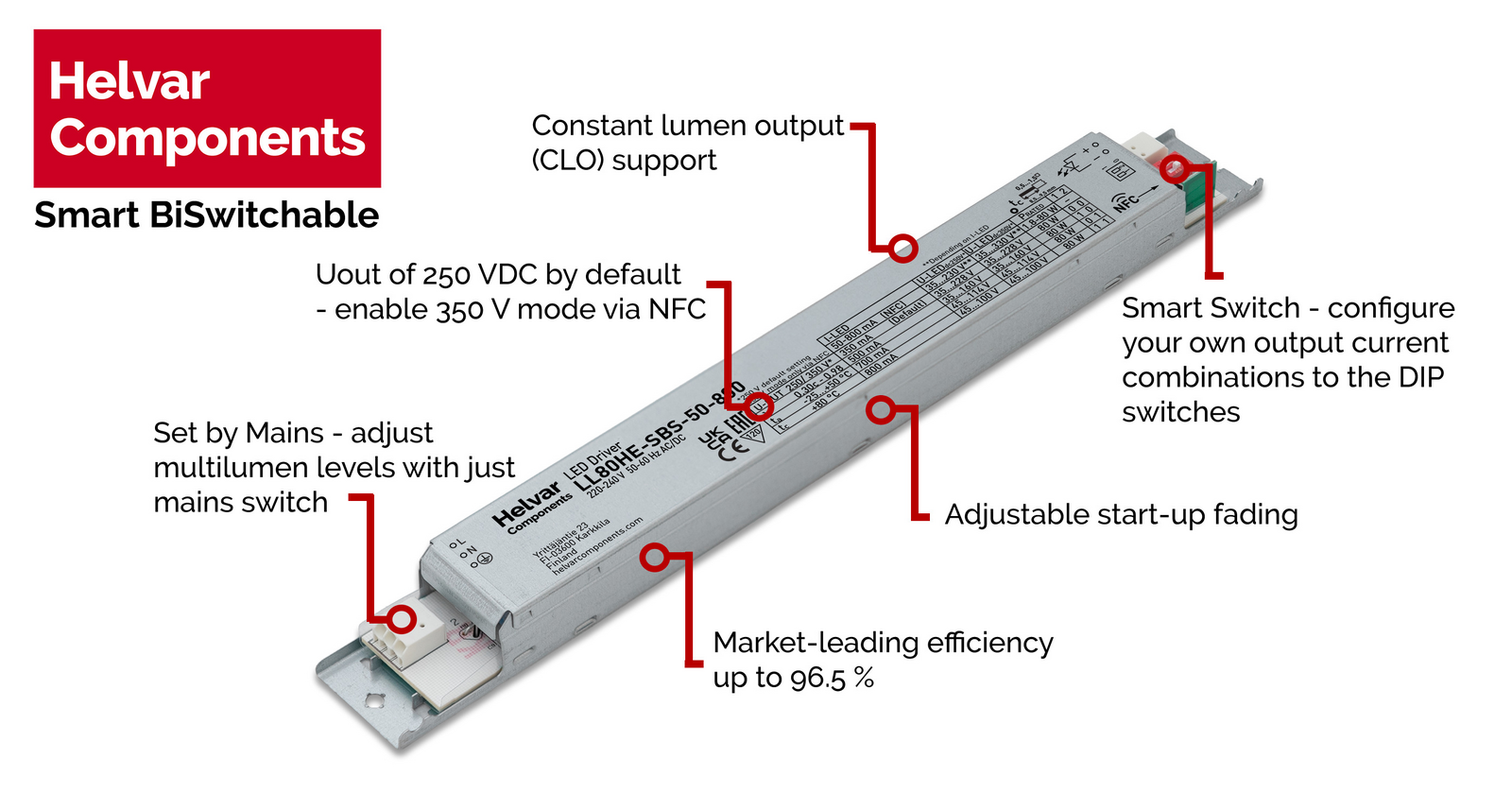

| Smart BiSwitchable Series - use it as your normal switchable on/off LED driver, or then as smart & adjustable one - your choice | |
|---|---|
| Innovative Set by Mains technology allows light level adjustment even on site with just mains switching | |
| Smart Switch technology - customize the DIP switch currents yourself | |
| 250 V Uout by default - possibility to unlock 350 V Uout mode via NFC for higher module voltages | |
| Helvar Driver Configurator support | ✓ |
| Intelligent features | Set by Mains, Current setting by software, Smart Switch, Uout adjustment, Constant Light Output (CLO), Wireless NFC programming |
| CLO | ✓ |
| Complies with IEEE 1789-2015 | ✓ |
| NFC | ✓ |
| Order code | Description |
|---|---|
| 580200 | LL80HE-SBS 50-800 10/1920 |
