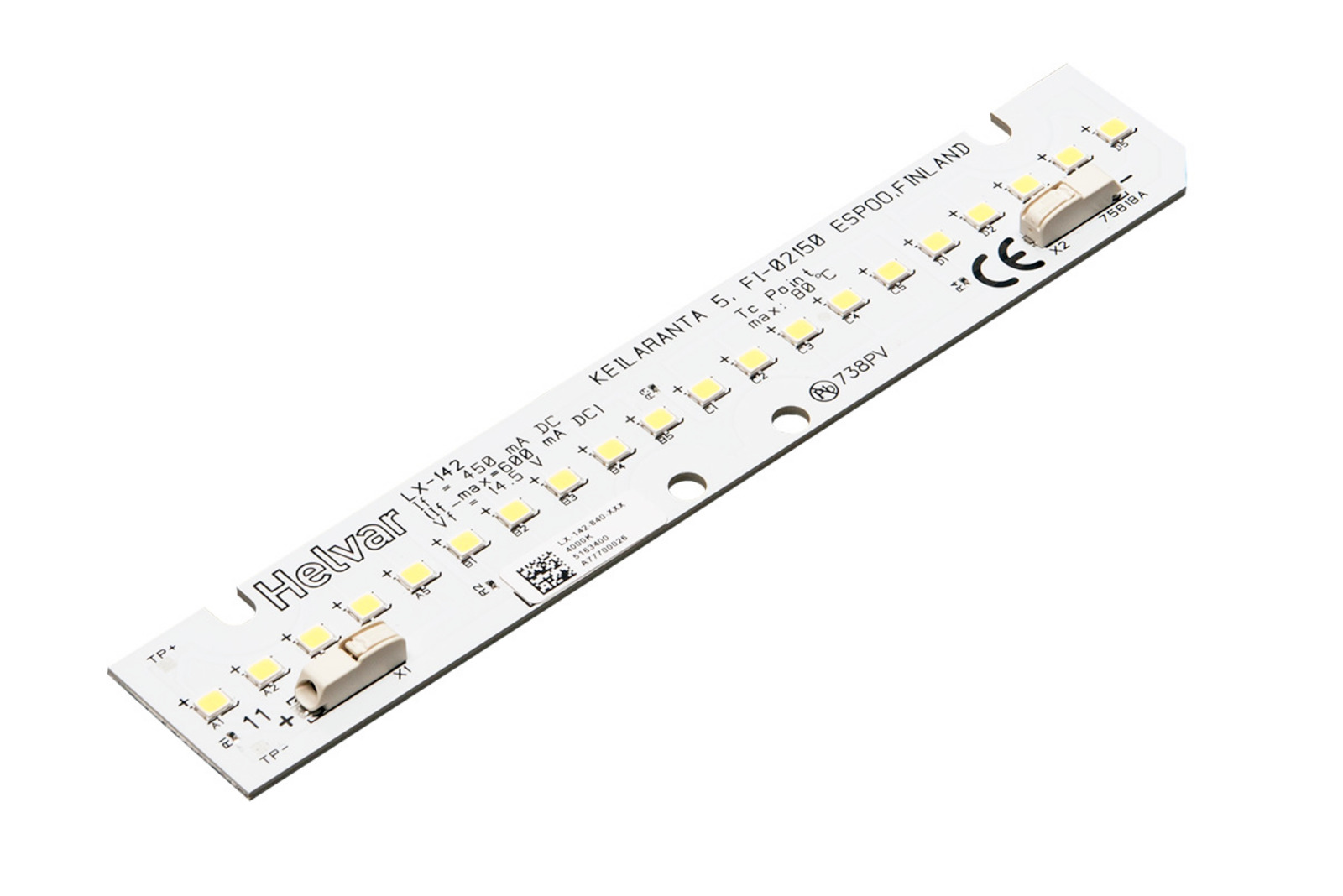

LX-142A
Linear LED Module
- Product number: 5163
- Dimensions: 139,8 x 23,8 x 6,2 mm
- Typical lumens (4000K @Tp): 1030
- Typical forward voltage (4000K @Tp) [v]: 14.2
- Typical efficacy (4000K @Tp) [lm/W]: 161
- LED Module family: Linear LX
Linear LED Module
| Compatible products |
|---|
| Maximum operating current [mA] | 600 |
|---|---|
| Maximum rated voltage [V] | 400 |
| Nominal operating current [mA] | 450 |
| IP Rating | IP00 |
|---|---|
| Lifetime up to (h) | 50000 |
| Maximum temperature at Tc point [°C] | 80 |
| Operating temperature range | –20…+50 °C, Tp = Tc 65 °C |
| 3000 K | ✓ |
|---|---|
| 4000 K | ✓ |
| 5000 k | ✓ |
| Beam angle [°] | 120 |
| Colour rendering index, min. | 80 |
| Risk group | 1 |
| Order code | Description |
|---|---|
| 5163400 | LX-142-840-010A 120/600 |
| 5163500 | LX-142-850-010A 120/600 |
| 5163300 | LX-142-830-010A 120/600 |
