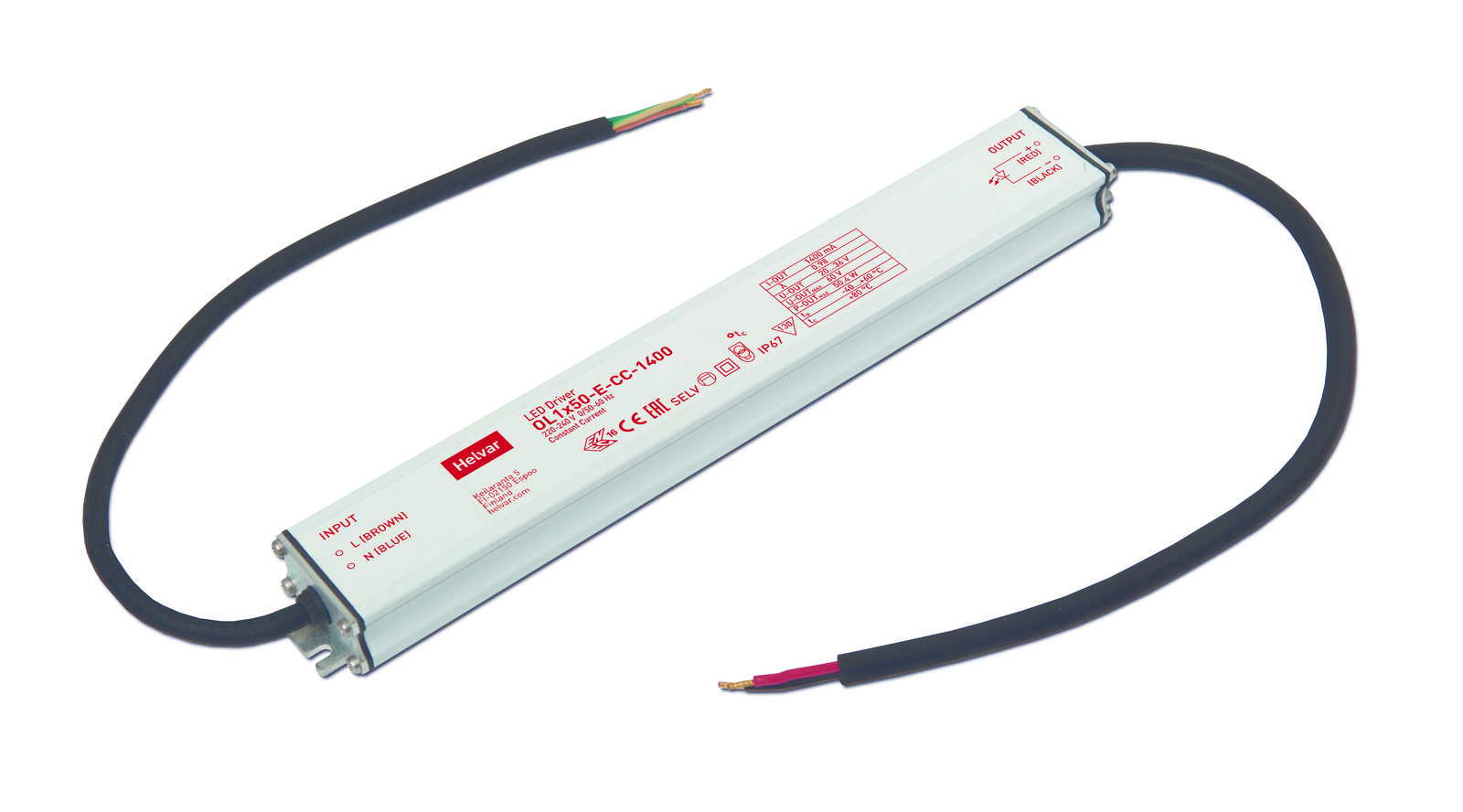

OL1x50-E-CC-1400 (Discontinued)
OL1x50-E-CC-1400 (Discontinued) - Image 2
OL1x50-E-CC-1400 (Discontinued) - Image 3

OL1x50-E-CC-1400 (Discontinued)

50 W outdoor LED driver

  • 1400 mA fixed current output
  • Product number: 5540901
  • Dimensions: 300 x 23 x 40 mm
  • LED Driver family: Other drivers
Datasheet

Specifications

Output

Output

Fixed current

Load protection

Isolated

Max output power (W)

50.4

Efficiency up to (%)

88

Power factor at full load

0.98

MinMax
Iout1400
Uout20–36

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176-280

Max temperature at tc point (°C)

85

Ambient temperature range

–20 °C .. +60 °C

IP Rating

IP67

Lifetime up to (h)

50000

Independent usage✓
Luminaire class I✓
Luminaire class II✓

Control

Control

ON/OFF

Features

Integrated strain relief✓
Complies with IEEE 1789-2015✓
