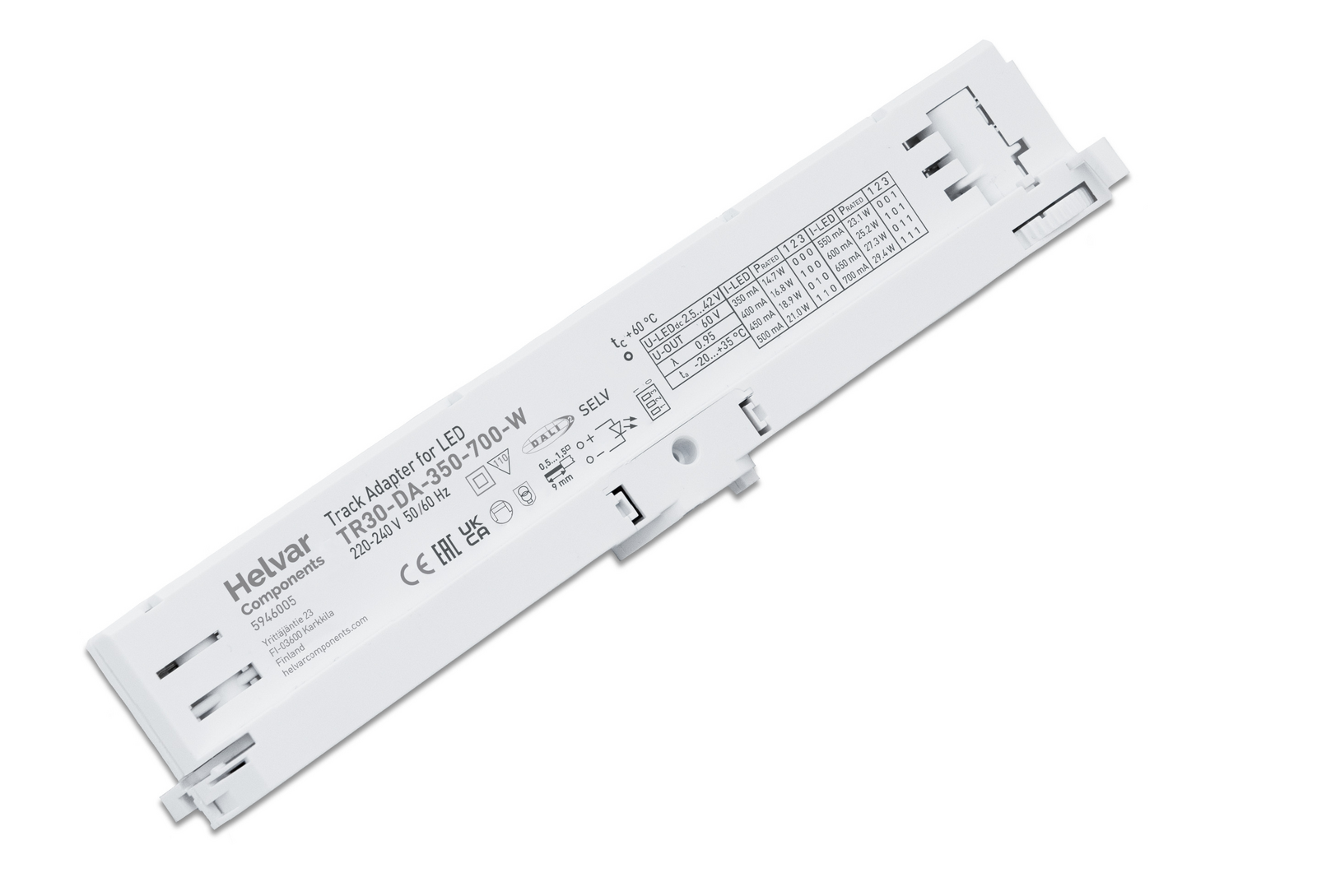

TR30-DA-350-700

30 W DALI-2 mains track adapter for LEDs

  • 350 mA – 700 mA adjustable current output
  • Product number: 5946
  • Dimensions: 257.2 x 30.6 x 50 mm
  • LED Driver family: TR Series
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

SELV60

Max output power (W)

30

Total Harmonic Distortion @ Full power (THD %)

10

Power factor at full load

0.99

Efficiency up to (%)

88

MinMax
Iout350700
Uout2.5-422.5-42

Input & Operating Conditions

Voltage range (VAC)

198 – 264

DC input characteristics

Suitable for DC use

DC range (V)

176 – 280

Ambient temperature range

–20 °C .. +35 °C

IP Rating

IP20

Lifetime up to (h)

50000

Luminaire class I✓
Luminaire class III✓
Luminaire class II✓

Control

Dimming method

Amplitude Dimming

Control

DALI-2

Dimming range

1 - 100 %

Features

Complies with IEEE 1789-2015✓

Order codes

Order codeDescription
5946105TR30-DA-350-700-B 30/960
5946205TR30-DA-350-700-G 30/960
5946005TR30-DA-350-700-W 30/960
