TR40-DA-200-1050

40 W DALI-2 mains track adapter for LEDs

  • 200 mA – 1050 mA adjustable current output
  • Product number: 5949

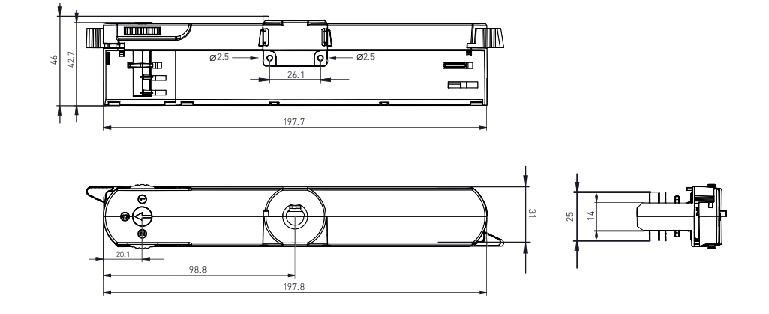

  • Dimensions: 197.8 x 31 x 46 mm
  • LED Driver family: TR Series
  • Main features: DALI, Smart Data
Datasheet

Specifications

Output

Output

DIP switch selectable current

Load protection

SELV60

Max output power (W)

40

Power factor at full load

0.95

Efficiency up to (%)

90

Total Harmonic Distortion @ Full power (THD %)

20

MinMax
Iout2001050
Uout10-4210-38

Input & Operating Conditions

Voltage range (VAC)

198 – 264

DC input characteristics

Suitable for DC use

DC range (V)

180 – 280

Max temperature at tc point (°C)

70

Ambient temperature range

–20 °C .. +35 °C

IP Rating

IP20

Lifetime up to (h)

50000

Independent usage✓
Luminaire class II✓
Luminaire class I✓
Luminaire class III✓

Control

Dimming method

Amplitude

Control


DALI-2
Corridor Control
Push to Fade

Dimming range

1 - 100%

Features

Smart data

Luminaire data (DALI 251), Energy monitoring (DALI 252), Maintenance & diagnostics (DALI 253)

Helvar Driver Configurator support✓
CLO✓
Complies with IEEE 1789-2015✓

Order codes

Order codeDescription

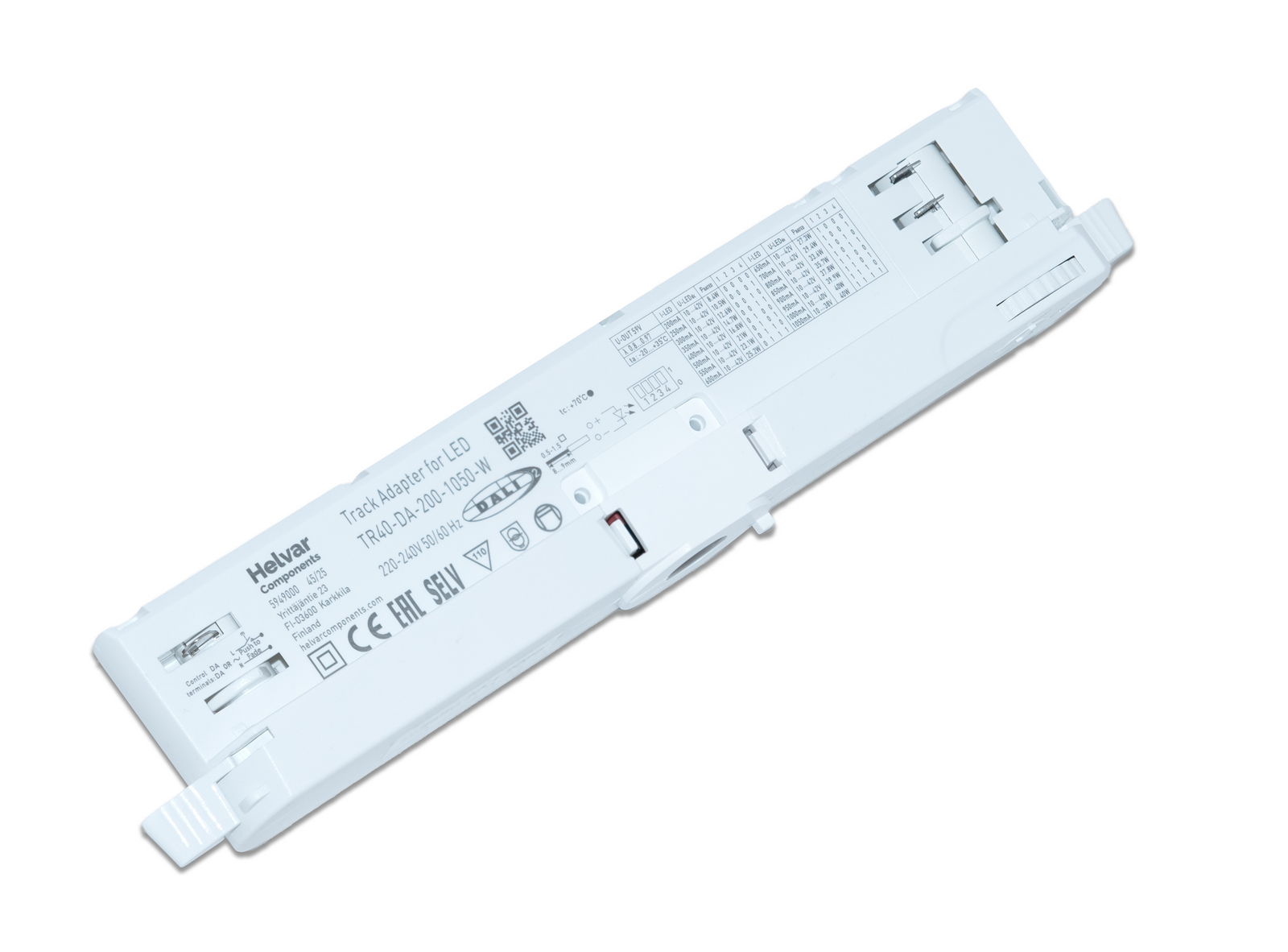

594900TR40-DA-200-1050-W

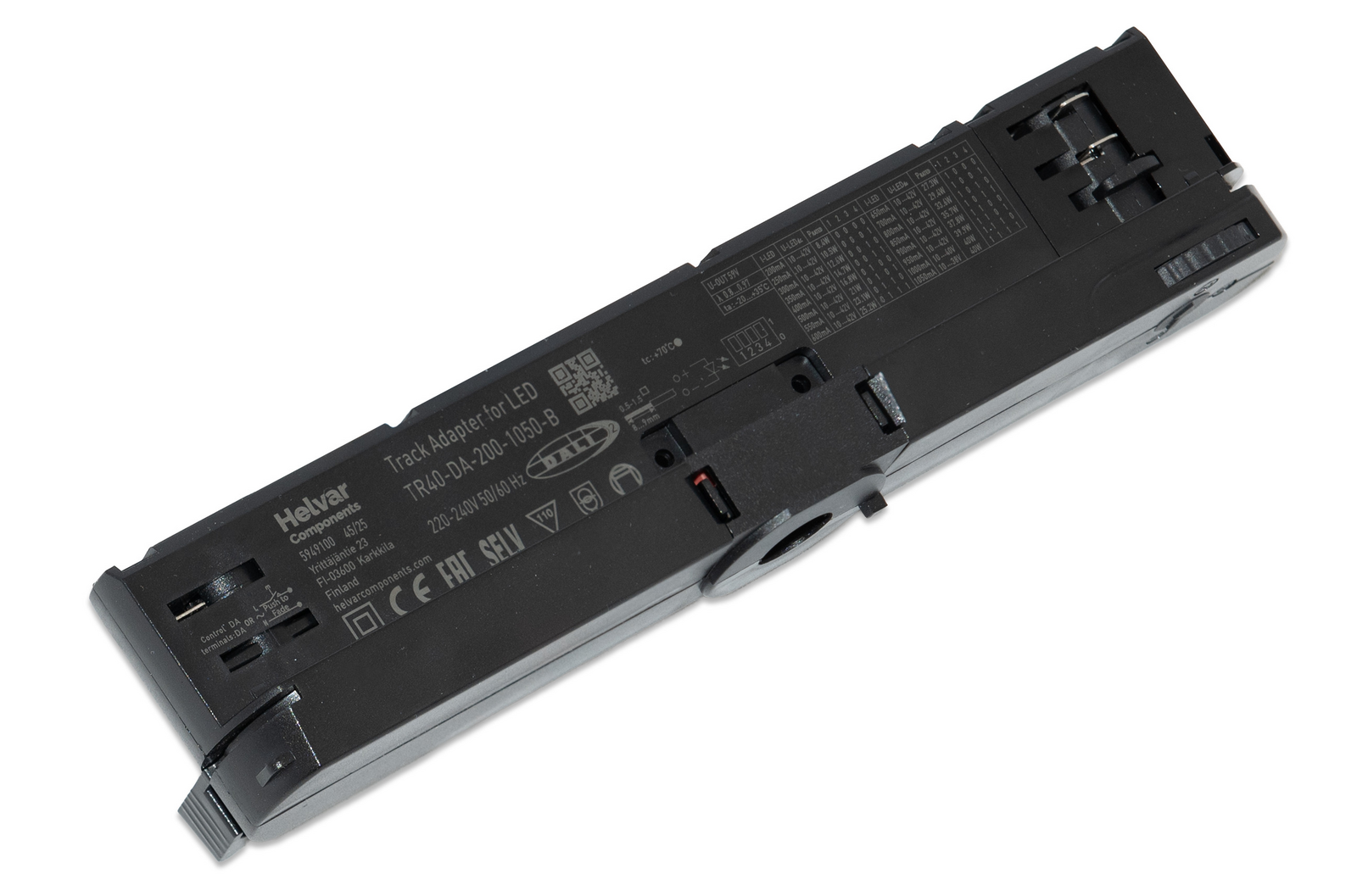

594910TR40-DA-200-1050-B

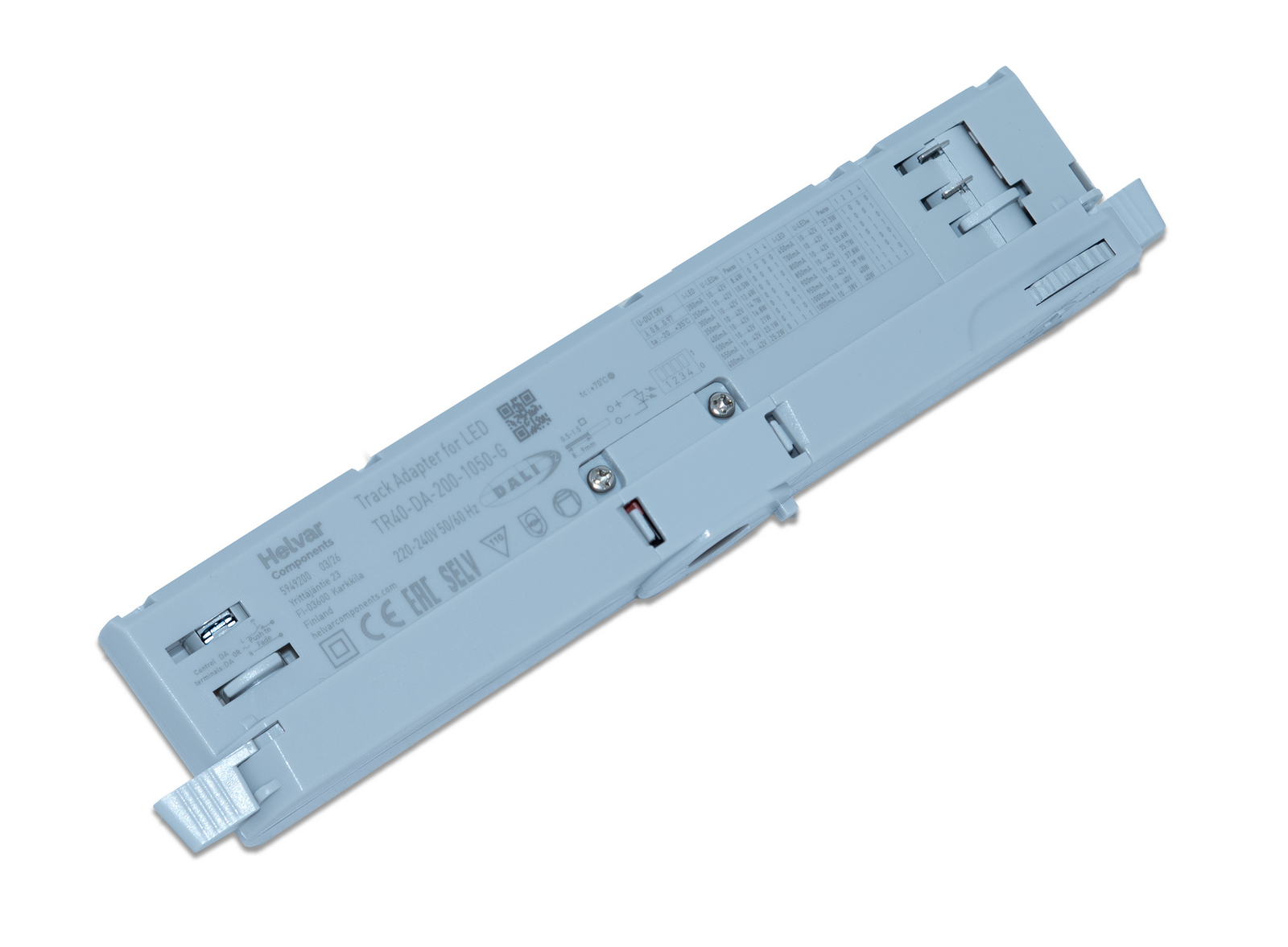

594920TR40-DA-200-1050-G
