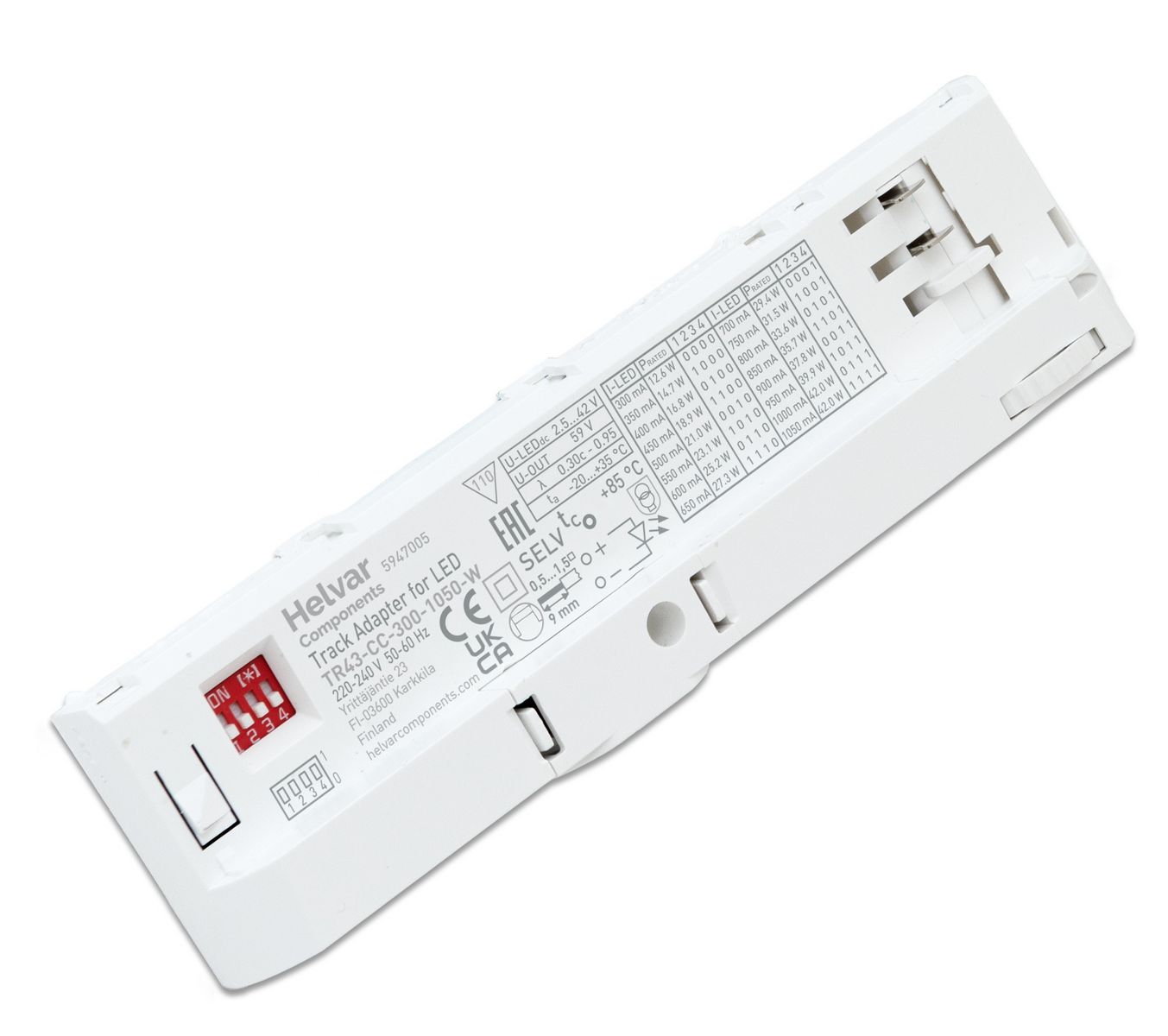

TR43-CC-300-1050
42 W Constant current mains track adapter for LEDs
- 300 mA – 1050 mA adjustable current output
- Product number: 5947
- Dimensions: 162 x 31.1 x 42.2 mm
- LED Driver family: TR Series
42 W Constant current mains track adapter for LEDs
| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 42 |
| Power factor at full load | 0.95 |
| Efficiency up to (%) | 88 |
| Total Harmonic Distortion @ Full power (THD %) | 10 |
| Min | Max | ||
|---|---|---|---|
| Iout | 300 | 1050 | |
| Uout | 2.5-42 | 2.5-40 |
| Voltage range (VAC) | 198 – 264 |
|---|---|
| DC input characteristics | No DC input |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –20 °C .. +35 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control | ON/OFF |
|---|
| Complies with IEEE 1789-2015 | ✓ |
|---|
| Order code | Description |
|---|---|
| 5947105 | TR43-CC-300-1050 BLACK 60/1920 |
| 5947205 | TR43-CC-300-1050 GREY 60/1920 |
| 5947005 | TR43-CC-300-1050 WHITE 60/1920 |
