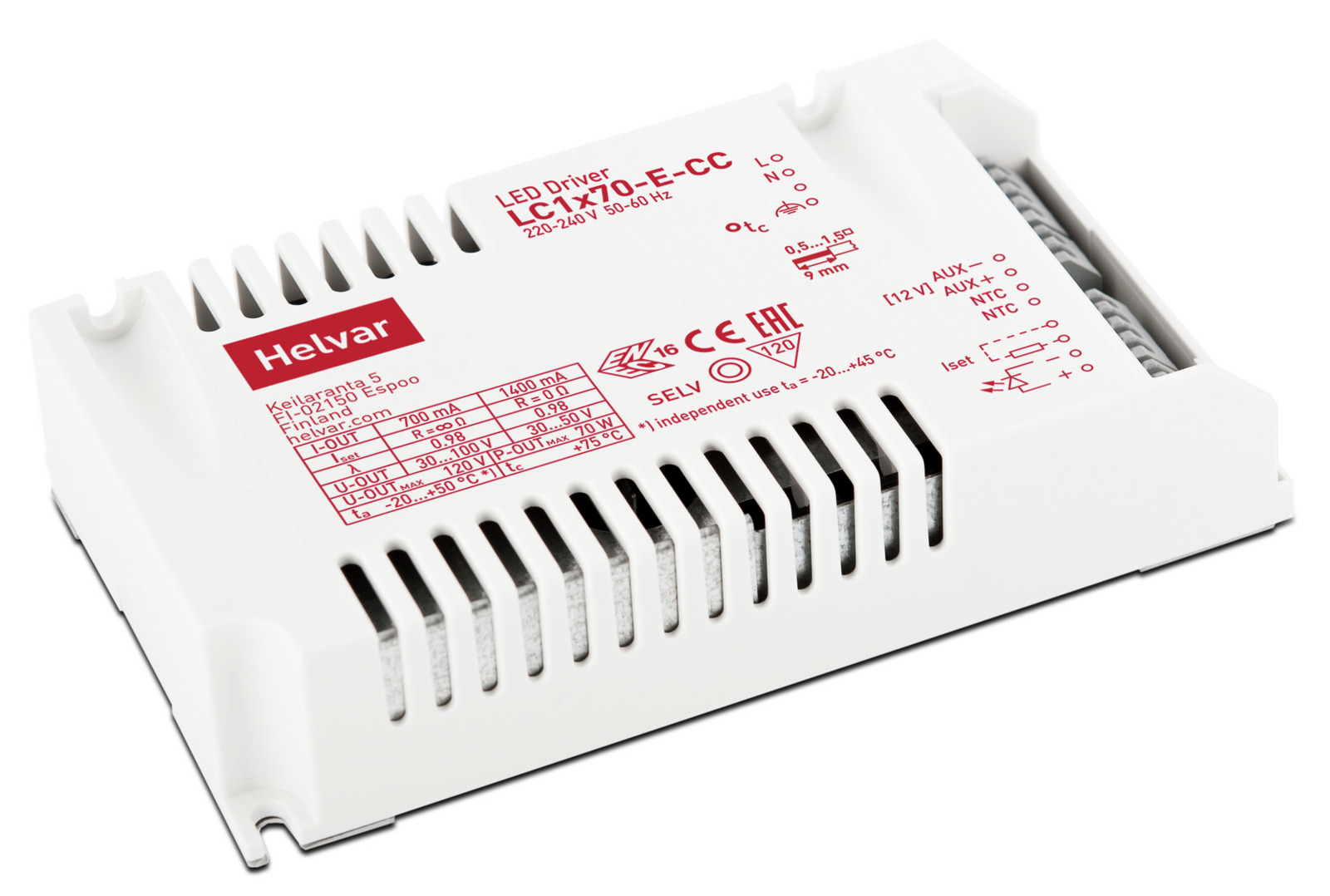

LC1x70-E-CC (Discontinued)
LC1x70-E-CC (Discontinued) - Image 2
LC1x70-E-CC (Discontinued) - Image 3

LC1x70-E-CC (Discontinued)

70 W constant current LED driver

  • 700 mA – 1400 mA adjustable current output
  • Product number: 5515001
  • Dimensions: 143,6 x 30,0 x 71,3 mm
  • LED Driver family: Other drivers
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV120

Max output power (W)

70

Efficiency up to (%)

91

Power factor at full load

0.98

MinMax
Iout7001400
Uout30–10030–50

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–280

Max temperature at tc point (°C)

75

Ambient temperature range

–20 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓

Control

Control

ON/OFF

Features

Complies with IEEE 1789-2015✓
NTC✓
Optional click-on strain relief for installation✓

Compatible products

Compatible products

LC-SRB, LC-SRB-LOOP, LC1x70-SR
