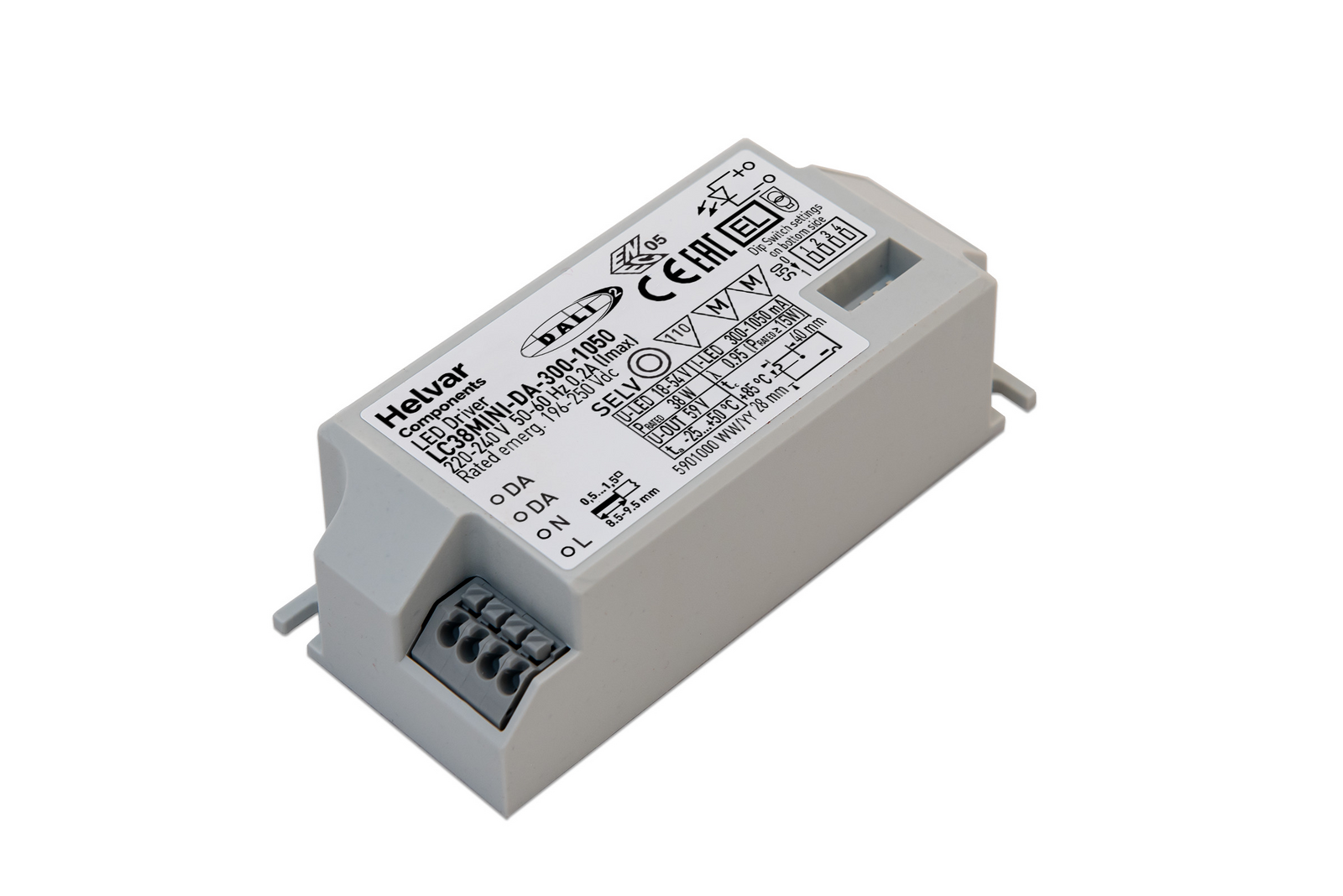

LC38MINI-DA-300-1050
LC38MINI-DA-300-1050 - Image 2
LC38MINI-DA-300-1050 - Image 3

LC38MINI-DA-300-1050

38 W DALI-2 dimmable LED driver for built-in use

  • 300 mA – 1050 mA adjustable current output
  • Product number: 5901000
  • Dimensions: 97 x 43 x 30 mm
  • LED Driver family: MINI
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

38

Efficiency up to (%)

90

Power factor at full load

0.95

MinMax
Iout3001050
Uout10–36

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176-275

Max temperature at tc point (°C)

85

Ambient temperature range

–25 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control

DALI-2

Dimming range

1% – 100%

Dimming method

Amplitude dimming

Features

Complies with IEEE 1789-2015✓
Optional click-on strain relief for installation✓

Order codes

Order codeDescription
5901000LC38MINI-DA-300-1050 50
