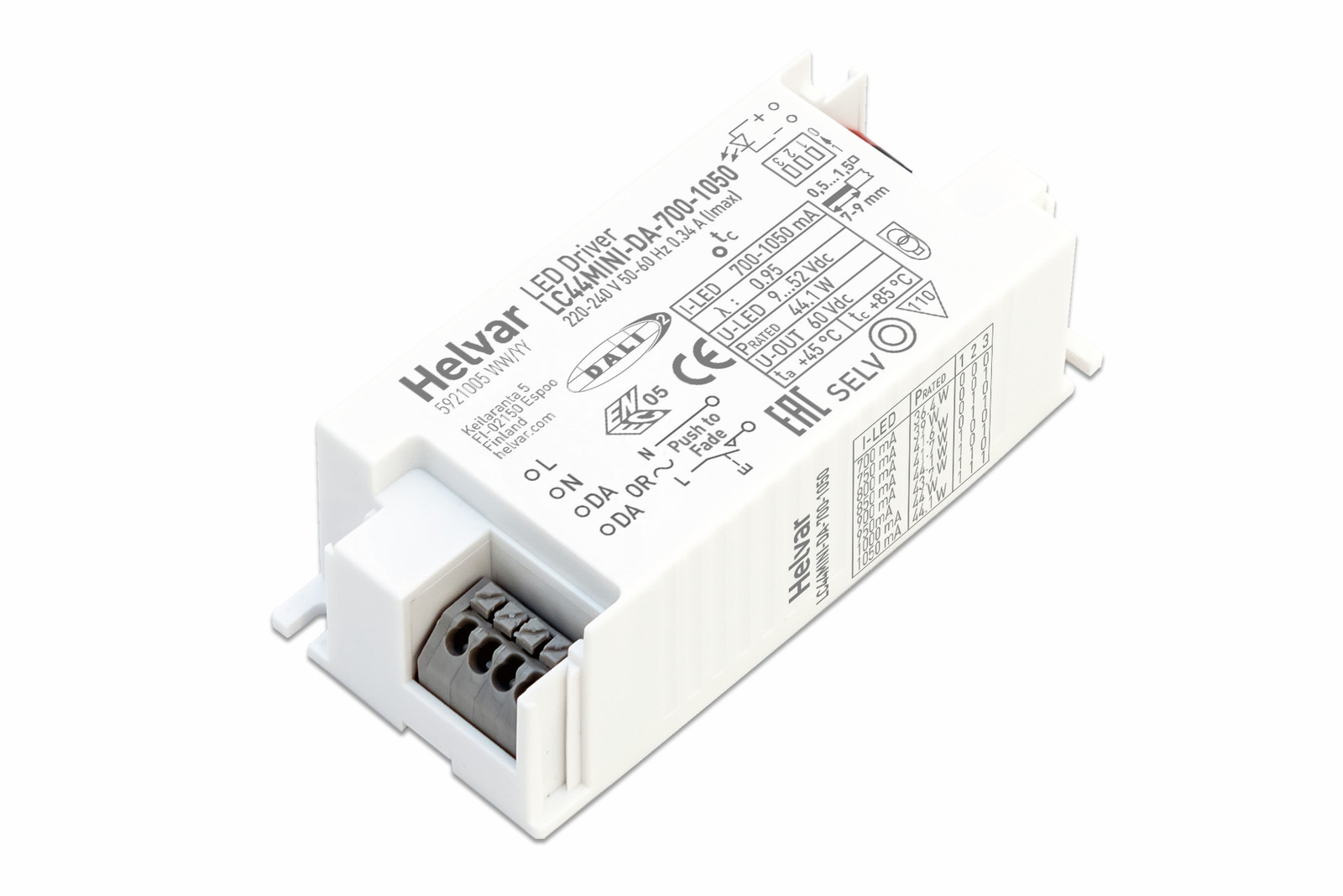

44 W DALI-2 dimmable LED driver for built-in use. Also separate strain reliefs available!
| Output | DIP switch selectable current |
|---|---|
| Load protection | SELV60 |
| Max output power (W) | 44.1 |
| Efficiency up to (%) | 87 |
| Power factor at full load | 0.95 |
| Min | Max | ||
|---|---|---|---|
| Iout | 700 | 1050 | |
| Uout | 9–52 | 9–42 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Approved for emergency lighting applications |
| DC range (V) | 176-280 |
| Max temperature at tc point (°C) | 85 |
| Ambient temperature range | –20 °C .. +45 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 50000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Luminaire class III | ✓ |
| Control |
|
|---|---|
| Dimming range | 1% - 100% |
| Dimming method | Amplitude dimming |
| Complies with IEEE 1789-2015 | ✓ |
|---|---|
| Optional click-on strain relief for installation | ✓ |
| Certificates |
|
|---|
| Compatible products |
|---|
