LL1x10-42-CC-350-700
10 W – 42 W constant current LED driver
- 350 mA – 700 mA adjustable current output
- Product number: 5722001

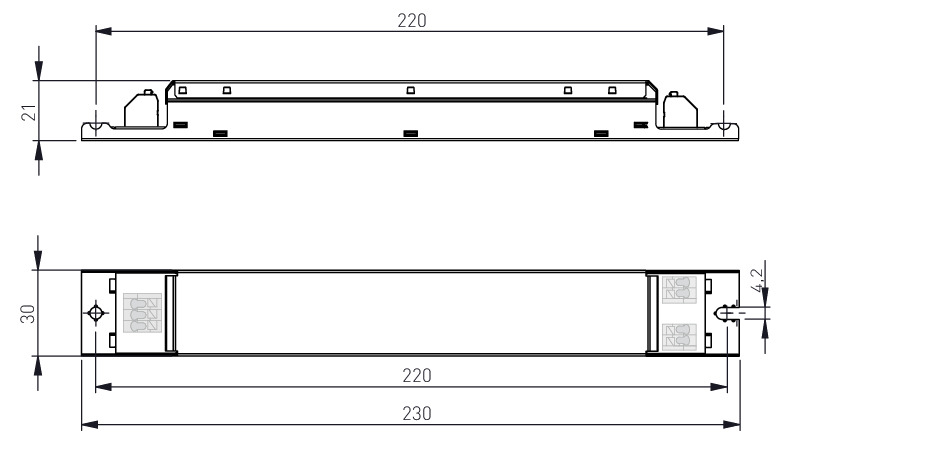

- Dimensions: 230 x 21 x 30 mm
- LED Driver family: Other drivers
10 W – 42 W constant current LED driver
| Output | Adjustable current |
|---|---|
| Load protection | Non-isolated |
| Max output power (W) | 42 |
| Efficiency up to (%) | 91 |
| Power factor at full load | 0.98 |
| Min | Max | ||
|---|---|---|---|
| Iout | 350 | 700 | |
| Uout | 28–120 | 20–60 |
| Voltage range (VAC) | 198–264 |
|---|---|
| DC input characteristics | Suitable for DC use |
| DC range (V) | 176–280 |
| Max temperature at tc point (°C) | 75 |
| Ambient temperature range | –25 °C ... +50 °C |
| IP Rating | IP20 |
| Lifetime up to (h) | 100000 |
| Luminaire class I | ✓ |
| Luminaire class II | ✓ |
| Control | ON/OFF |
|---|
| Optional click-on strain relief for installation | ✓ |
|---|---|
| Complies with IEEE 1789-2015 | ✓ |

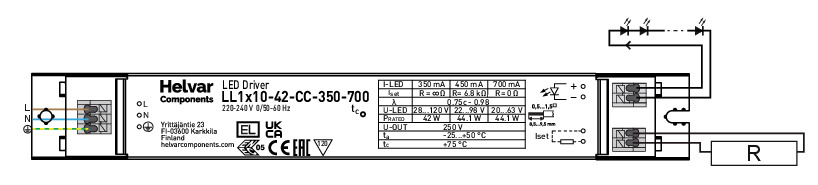

| Current setting resistors | ✓ |
| Certificates |
|
|---|
| Compatible products |
|---|
| Order code | Description |
|---|---|
| 5722006 | LL1x10-42-CC-350-700 10/2000 |
