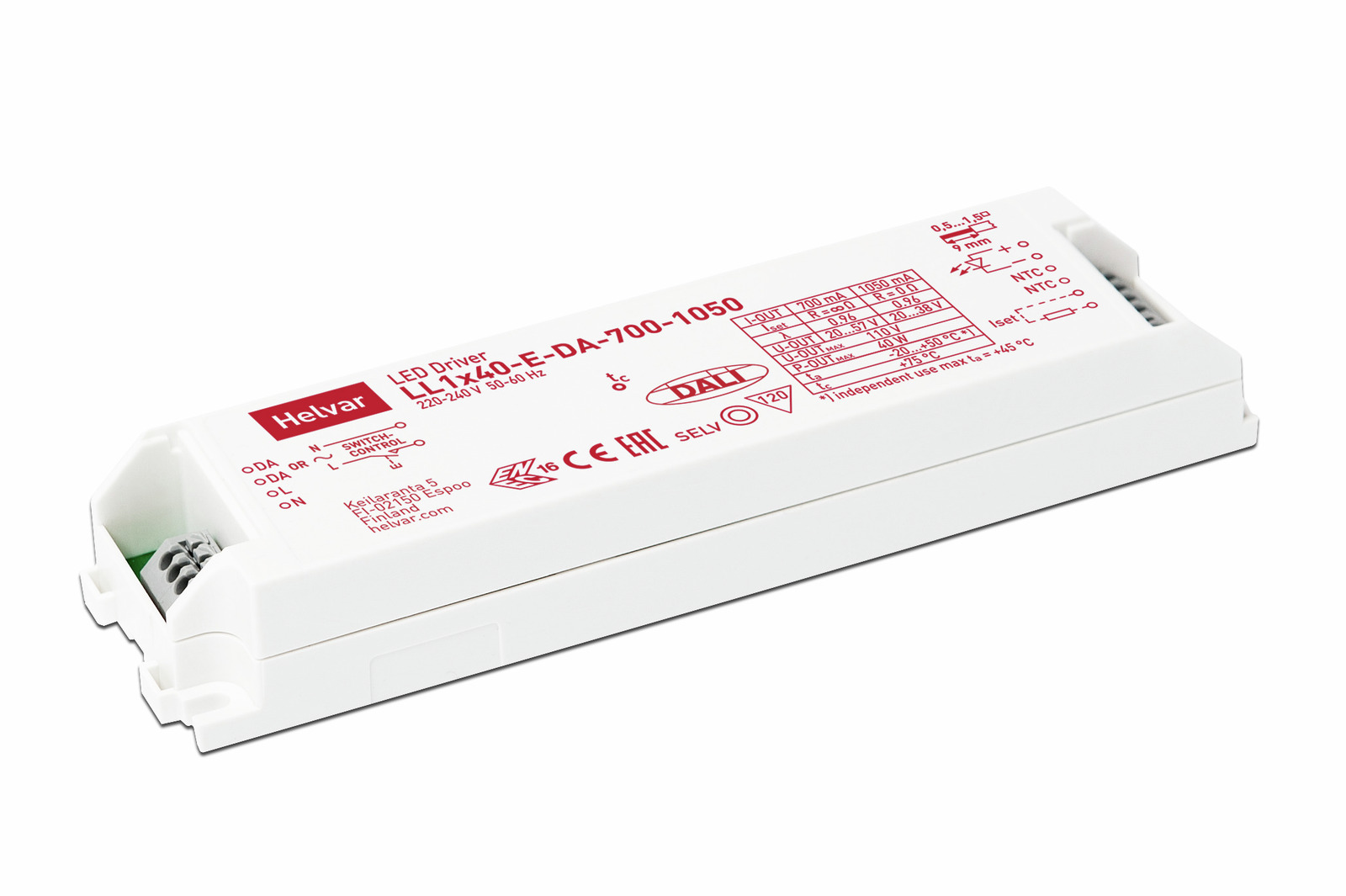

LL1x40-E-DA-700-1050 (Discontinued)
LL1x40-E-DA-700-1050 (Discontinued) - Image 2
LL1x40-E-DA-700-1050 (Discontinued) - Image 3

LL1x40-E-DA-700-1050 (Discontinued)

40 W DALI dimmable LED driver

  • 700 mA – 1050 mA adjustable current output
  • Product number: 5524001
  • LED Driver family: Other drivers
  • Main features: DALI
  • Replacing product: LC43MINI-DA-150-1050
Datasheet

Specifications

Output

Max output power (W)

40

Efficiency up to (%)

89

Power factor at full load

0.96

MinMax
Iout7001050
Uout20–5720–38

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Suitable for DC use

DC range (V)

176–280

Max temperature at tc point (°C)

75

Ambient temperature range

–20 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Control

Control

DALI

Dimming range

1% – 100%

Features

NTC✓
Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓
