LL35SE-DA-250-850

35 W DALI-2 dimmable LED driver

  • 250 mA – 850 mA adjustable current output
  • Product number: 5736000

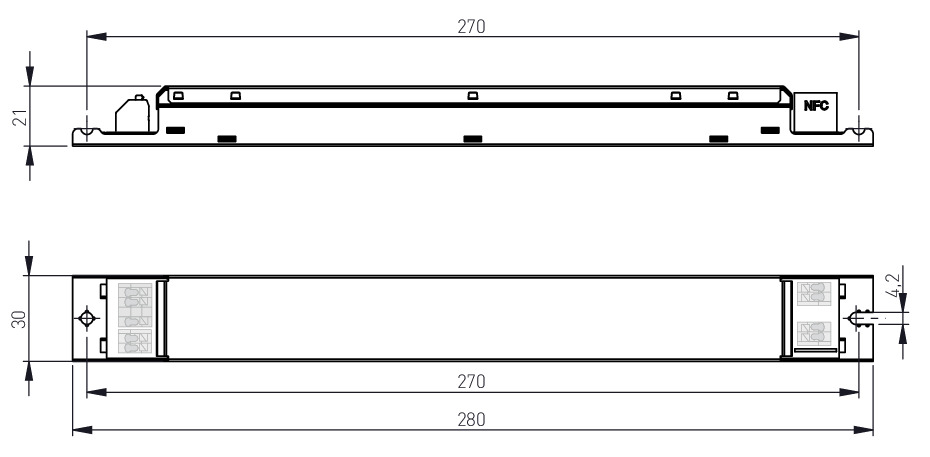

  • Dimensions: 280 x 30 x 21 mm
  • LED Driver family: SE Series
  • Main features: DALI, Amplitude
Datasheet

Specifications

Output

Output

Adjustable current

Load protection

SELV60

Max output power (W)

35

Efficiency up to (%)

88

Power factor at full load

0.97

MinMax
Iout250850
Uout25–5425-42

Input & Operating Conditions

Voltage range (VAC)

198–264

DC input characteristics

Approved for emergency lighting applications

DC range (V)

176-280

Max temperature at tc point (°C)

75

Ambient temperature range

–25 °C .. +50 °C

IP Rating

IP20

Lifetime up to (h)

100000

Luminaire class I✓
Luminaire class II✓
Luminaire class III✓

Control

Control


DALI-2
Direct Control

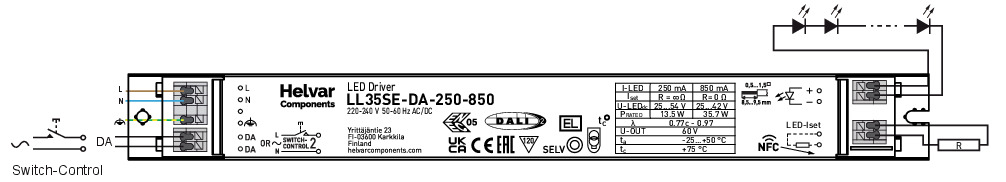

Switch-Control 2

Dimming range

1% – 100%

Dimming method

Amplitude Dimming

Features

Helvar Driver Configurator support✓
Intelligent features

Current setting by software, Constant Light Output (CLO), Data memory bank including OEM customer data input, Wireless NFC programming

NTC✓
Optional click-on strain relief for installation✓
Complies with IEEE 1789-2015✓
CLO✓
NFC✓
Current setting resistors✓

More information

Certificates


ENEC
CB
EL
BIS

Compatible products

Compatible products

LL-SR-NFC

Order codes

Order codeDescription
5736001LL35SE-DA-250-850 10/1920
