LL65HE-CC-250-700

65 W constant current LED driver

250 mA - 700 mA adjustable current output
Product number: 5726001

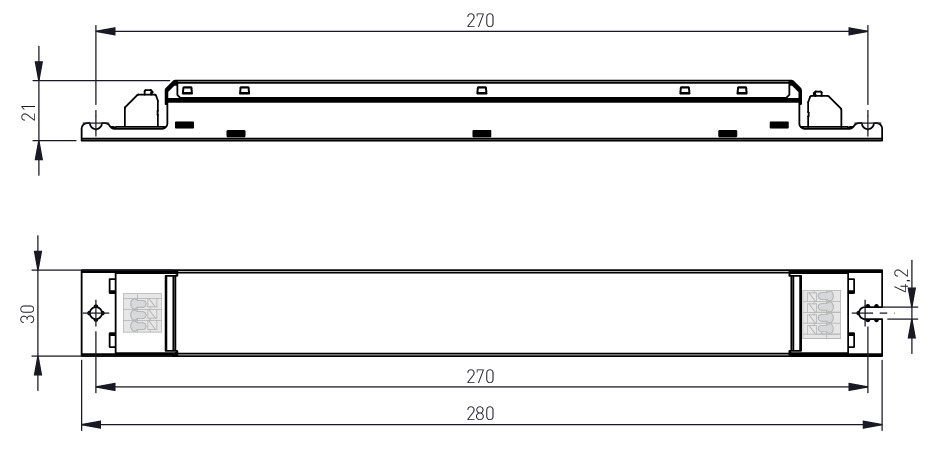

Dimensions: 280 x 21 x 30 mm
LED Driver family: HE Series
Main features: Efficient

Specifications

Output

Output	Adjustable current
Load protection	Non-isolated
Max output power (W)	65
Efficiency up to (%)	94
Power factor at full load	0.98

	Min	Max
I_out	250	700
U_out	90–220	50–93

Input & Operating Conditions

Voltage range (VAC)	198–264
DC input characteristics	Approved for emergency lighting applications
DC range (V)	176-280
Max temperature at tc point (°C)	75
Ambient temperature range	–25 °C .. +50 °C
IP Rating	IP20
Lifetime up to (h)	100000
Luminaire class I	✓
Luminaire class II	✓

Control

Control	ON/OFF

Features

Optional click-on strain relief for installation	✓
Complies with IEEE 1789-2015	✓

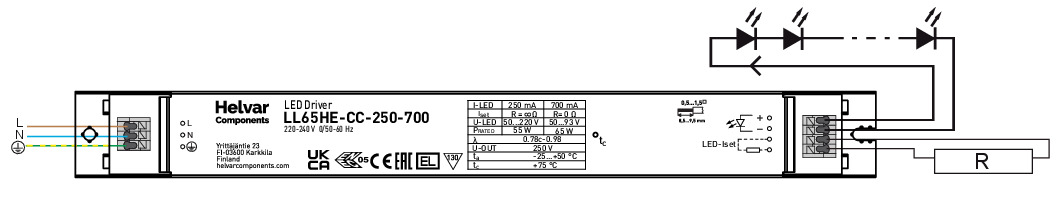

Current setting resistors	✓

More information

Certificates	ENEC CB EL BIS

Compatible products

Compatible products	LL1x2130-SR

Documents and tools

Datasheet
2D/3D Files
EC Declaration of conformity
ENEC Certificate
CB Certificate

LED solutions catalogue
Product code markings
LEDesign
LED tools, help, troubleshooting

Order codes

Order code	Description
5726001	LL65HE-CC-250-700 10/2000.
